Engine, Vortec 6.0L Variable Valve Timing V8 Sfi, E85-Compatible, Flexfuel Capable Of Running On Unleaded Or Up To 85% Ethanol (360 Hp [268.4 Kw] @ 5400 Rpm, 380 Lb-Ft Of Torque [515.0 N-M] @ 4200 Rpm) (Does Not

• E85 Capability With (Zw9) Pickup Box Delete.)
• Rear Axle, 4.10 Ratio (Requires (L96) Vortec 6.0L V8 Sfi Engine.)
• Suspension Package, Standard Includes 51Mm Twin Tube Shock Absorbers And 33Mm Front Stabilizer Bar
• Pickup Box
• Gvwr, 9500 Lbs. (4309 Kg) (Requires (L96) Vortec 6.0L V8 Sfi Engine. Not Available With Ck25943 Or Cc25903 Model.)
• Air Cleaner, High-Capacity

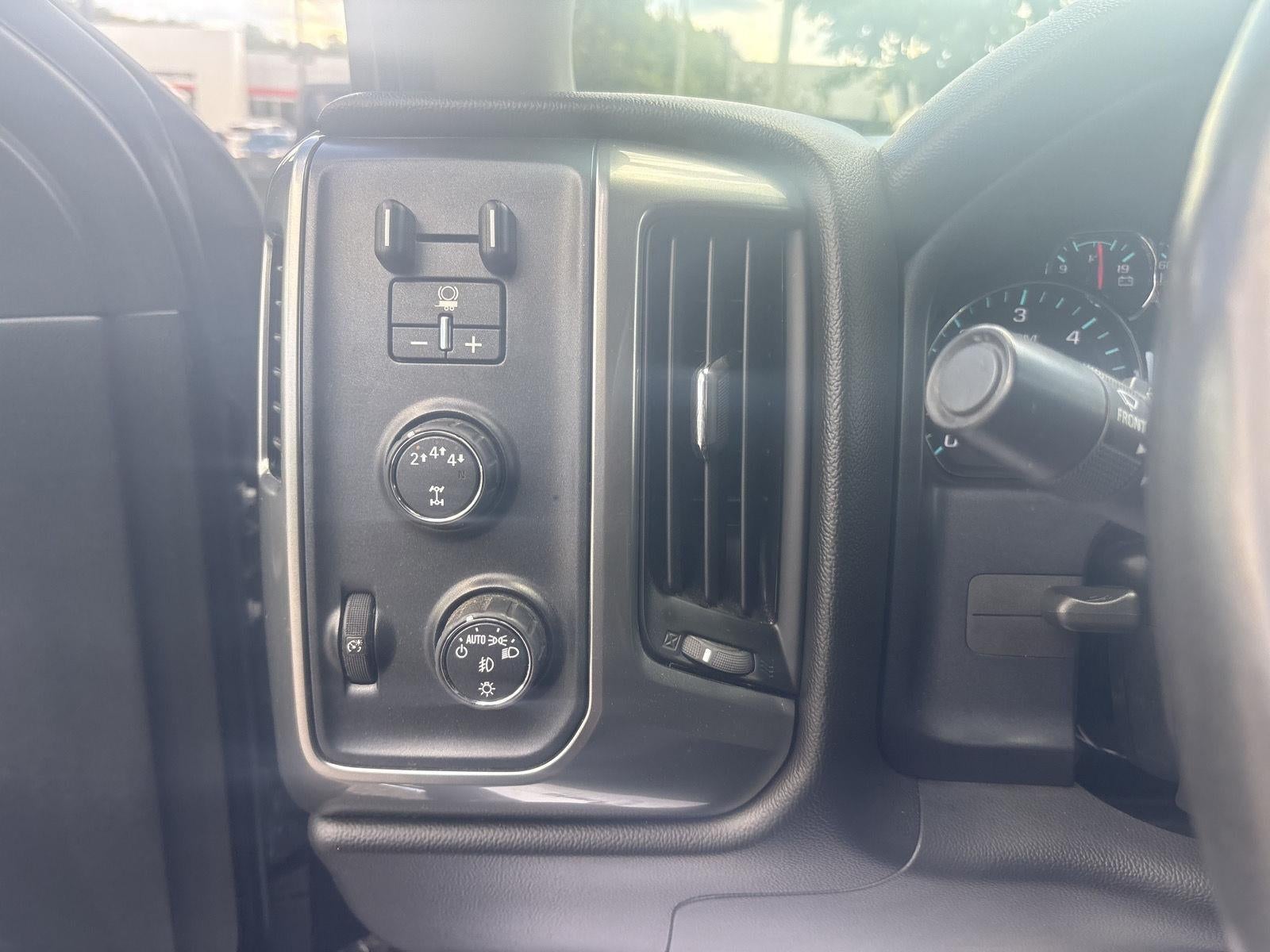

• Transfer Case, Electronic Shift With Rotary Dial Controls (Requires 4Wd Models.)
• Differential, Heavy-Duty Locking Rear
• Four Wheel Drive
• Cooling, External Engine Oil Cooler
• Cooling, Auxiliary External Transmission Oil Cooler
• Battery, Heavy-Duty 720 Cold-Cranking Amps/80 Amp-Hr, Maintenance-Free With Rundown Protection And Retained Accessory Power
• Alternator, 150 Amps
• Frame, Fully-Boxed, Hydroformed Front Section
• Brakes, 4-Wheel Antilock, 4-Wheel Disc With Duralife Brake Rotors
• Capless Fuel Fill (Gas Engine Only. Not Available With (Zw9) Pickup Box Delete.)
• Exhaust, Aluminized Stainless-Steel Muffler And Tailpipe
• Tire Carrier Lock Keyed Cylinder Lock That Utilizes Same Key As Ignition And Door (Not Included When (Zw9) Pickup Box Delete Or (9J4) Rear Bumper Delete Is Ordered.)
• Wheelhouse Liners, Rear (Requires Crew Cab Or Double Cab Model. Deleted With (Zw9) Pickup Box Delete Is Ordered.)
• Bumper, Front Chrome
• Cornerstep, Rear Bumper (Requires (E63) Pickup Box.)
• Bumper, Rear Chrome With Bumper Cornersteps (Requires (E63) Pickup Box.)
• Moldings, Bodyside, Body Color
• Grille Surround, Chrome
• Headlamps, Halogen Projector-Beam
• Lamps, Cargo Area, Cab Mounted With Switch On Center Switch Bank
• Mirror Caps, Body-Color
• Glass, Deep-Tinted

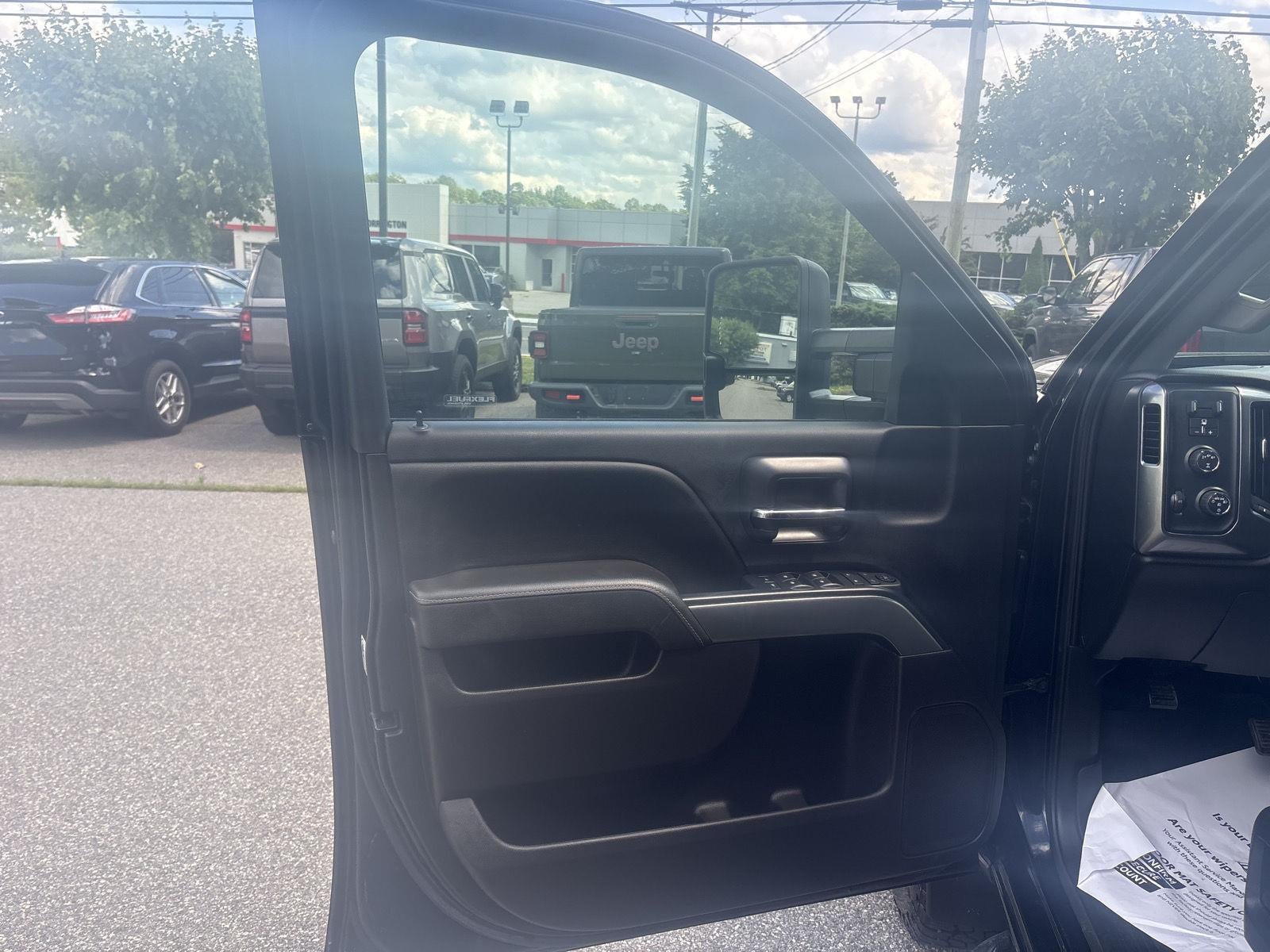

• Door Handles, Body-Color
• Tailgate And Bed Rail Protection Caps, Top
• Tailgate, Ez-Lift And Lower (Deleted With (Zw9) Pickup Box Delete Is Ordered.)
• Remote Locking Tailgate

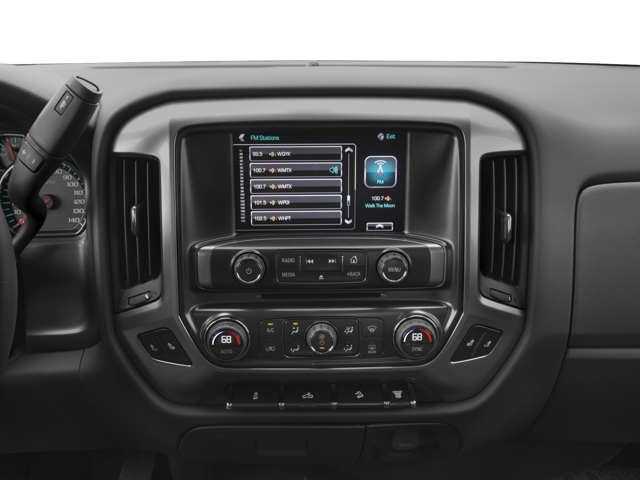

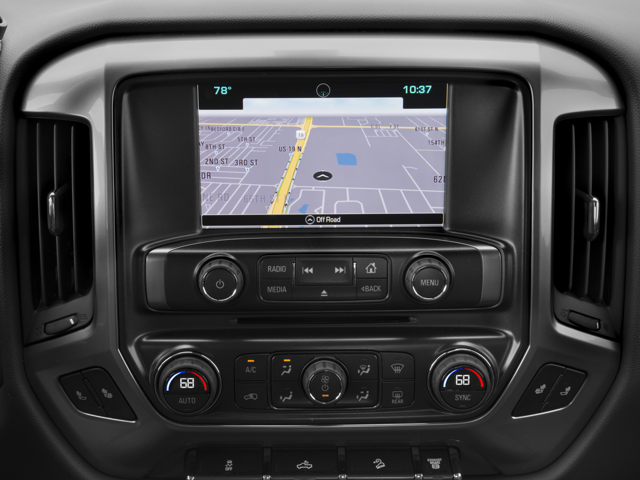

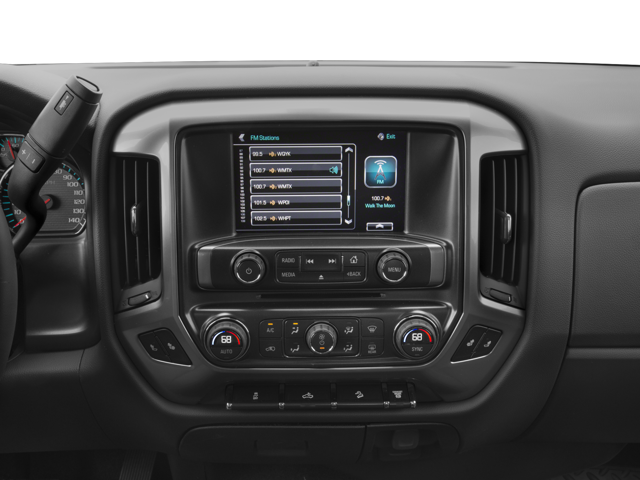

• Radio, Hd
• 6-Speaker Audio System

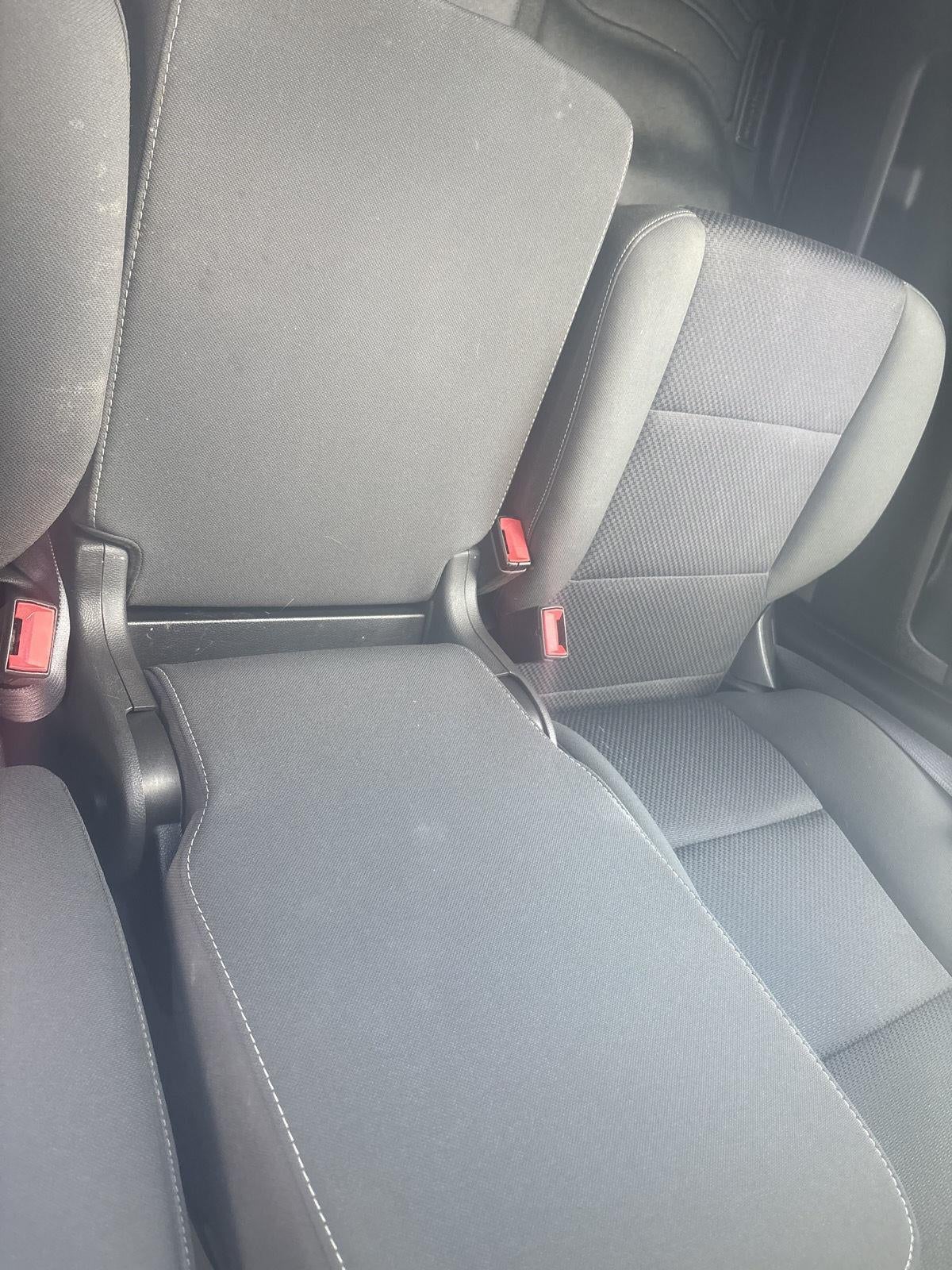

• Seat, Rear 60/40 Folding Bench (Folds Up), 3-Passenger (Includes Child Seat Top Tether Anchor) (Requires Crew Cab Or Double Cab Models.)

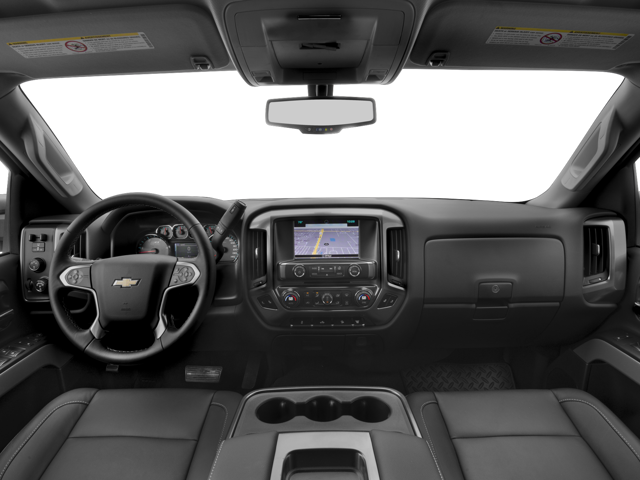

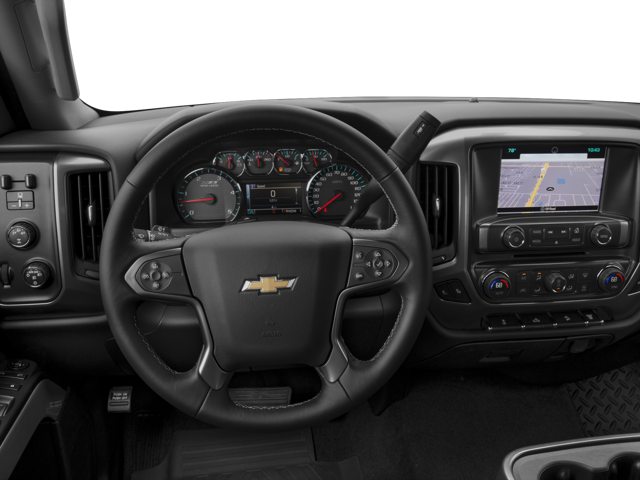

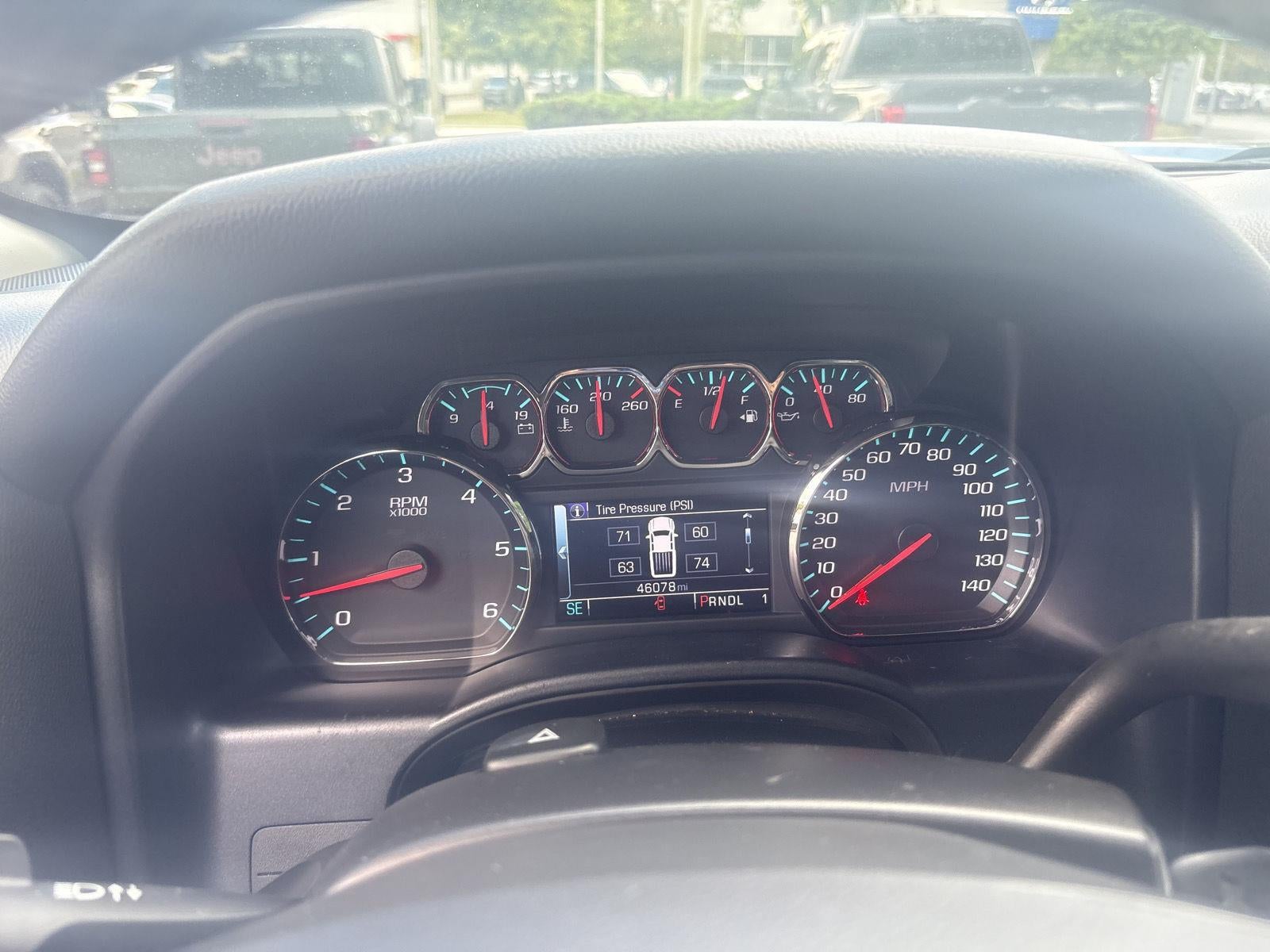

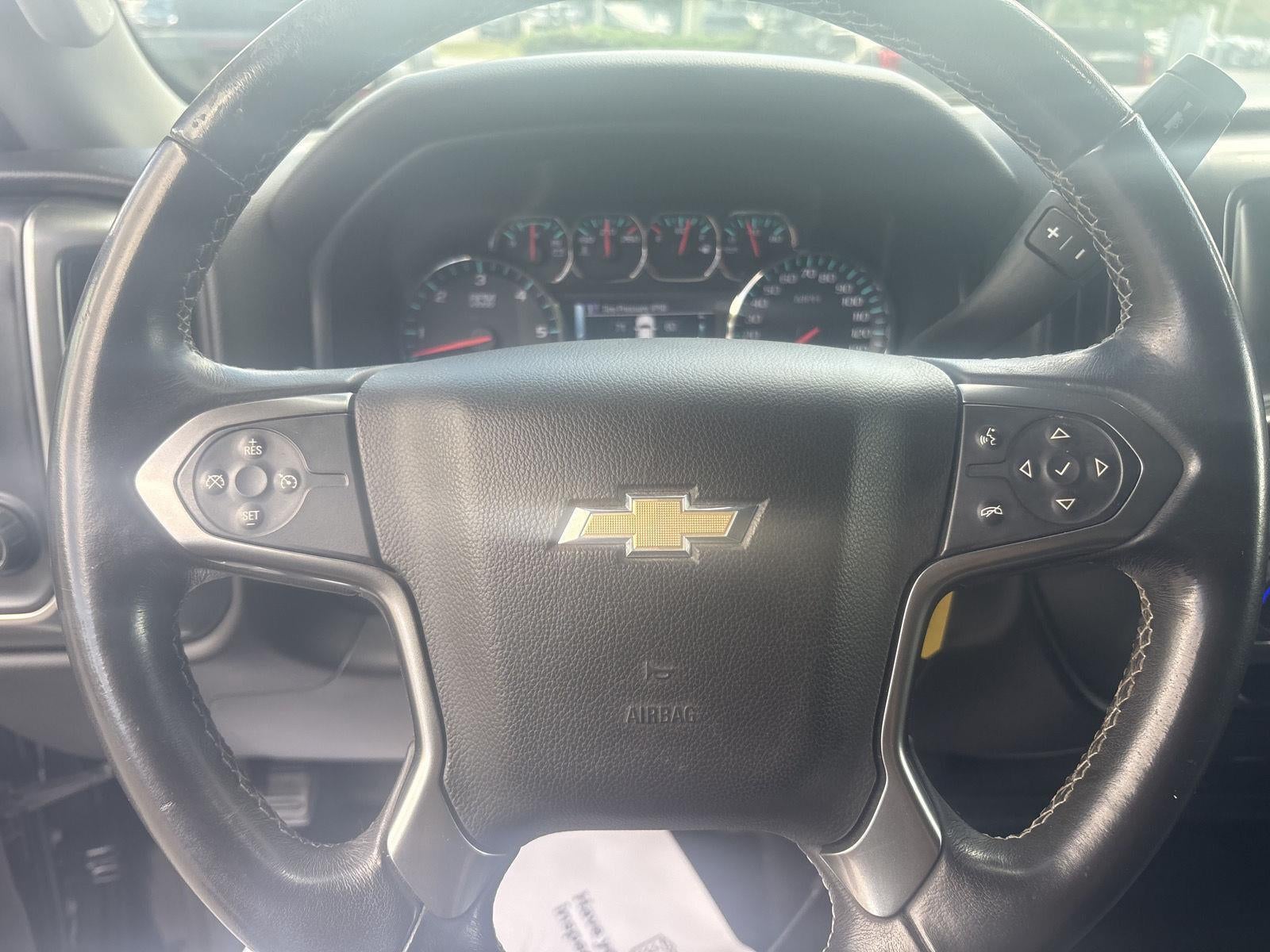

• Instrumentation, 6-Gauge Cluster Featuring Speedometer, Fuel Level, Engine Temperature, Tachometer, Voltage And Oil Pressure
• Driver Information Center, 4.2-Inch Diagonal Color Display Includes Driver Personalization, Warning Messages And Vehicle Information
• Visors, Driver And Front Passenger Illuminated Vanity Mirrors
• Assist Handle, Front Passenger And Driver On A-Pillars
• Stabilitrak, Stability Control System With Proactive Roll Avoidance And Traction Control Includes Electronic Trailer Sway Control And Hill Start Assist
• Daytime Running Lamps With Automatic Exterior Lamp Control
• Airbags, Crew Cab: Single-Stage Frontal Airbags For Driver And Front Outboard Passenger; Seat-Mounted Side-Impact Airbags For Driver And Front Outboard Passenger; Head-Curtain Airbags For Front And Rear Outboard Seating Positions. (With (Zw9) Pickup Box Delete On Double Cab And Regular Cab You Will Get The Following: Single-Stage Frontal Airbags For Driver And Front Outboard Passenger; Seat-Mounted Side-Impact Airbags For Driver And Front Outboard Passenger; Head-Curtain Airbags For Front And Rear Outboard Seating Positions; Includes Airbag Deactivation Switch For Front Outboard Passenger Airbag. Always Use Safety Belts And Child Restraints. Children Are Safer When Properly Secured In A Rear Seat In The Appropriate Child Restraint. See The Owner's Manual For More Information. Regular Cab Model Does Not Have Rear Outboard Seating Positions.)
• Rear Vision Camera (Removed When (Zw9) Pickup Box Delete Is Ordered.)
• Teen Driver Mode A Configurable Feature That Lets You Activate Customizable Vehicle Settings Associated With A Key Fob, To Encourage Safe Driving Behavior. It Can Limit Certain Vehicle Features, It Prevents Certain Safety Systems From Being Turned Off. An In-Vehicle Report Gives You Information On Your Teen's Driving Habits And Helps You To Continue To Coach Your New Driver
• Tire Pressure Monitoring System (Does Not Apply To Spare Tire)

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 21100
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3500
• Maximum Trailering Capacity (lbs): 13000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QHQ

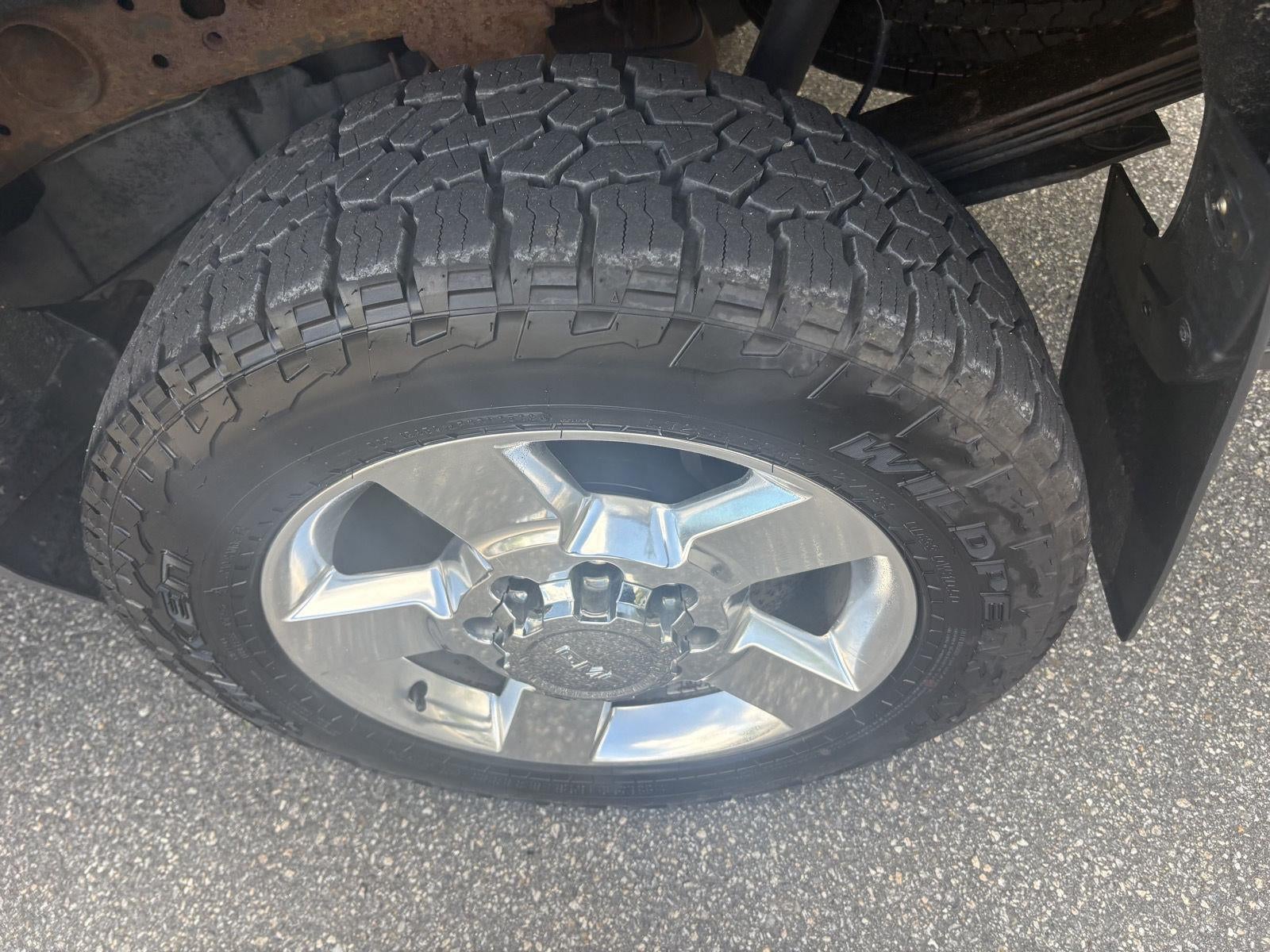

• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): 5200
• Rear Tire Capacity (lbs): 6200
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.1
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.5
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.70
• Length, Overall w/o rear bumper (in): 239.50
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.23
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 150.10
• Cab to Axle (in): 41.26
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.65
• Ground Clearance, Rear (in): 9.65
• Cargo Area Dimensions

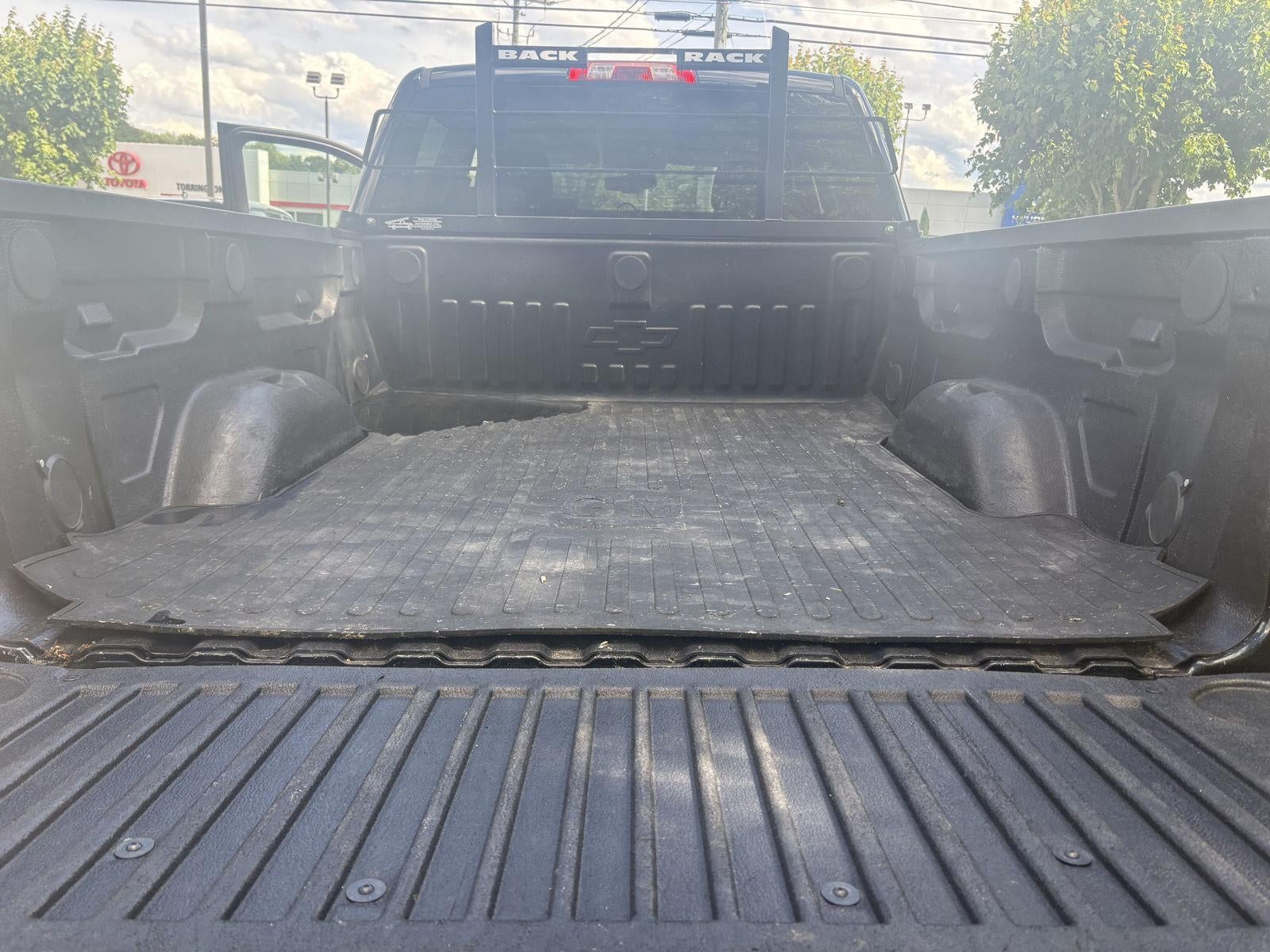

• Cargo Box Length @ Floor (in): 78.86
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.9
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): 62.20
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary

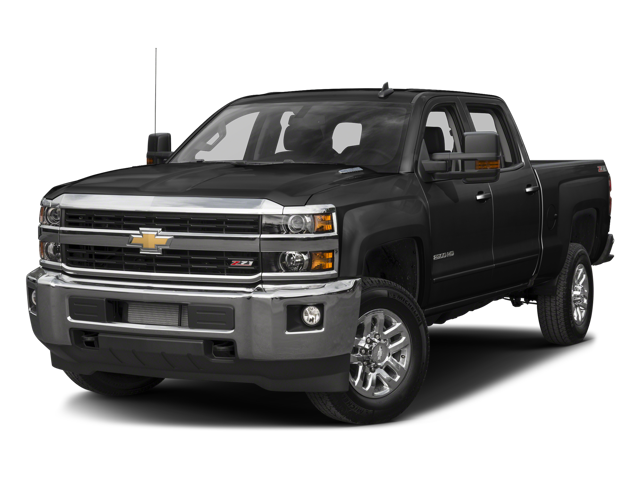

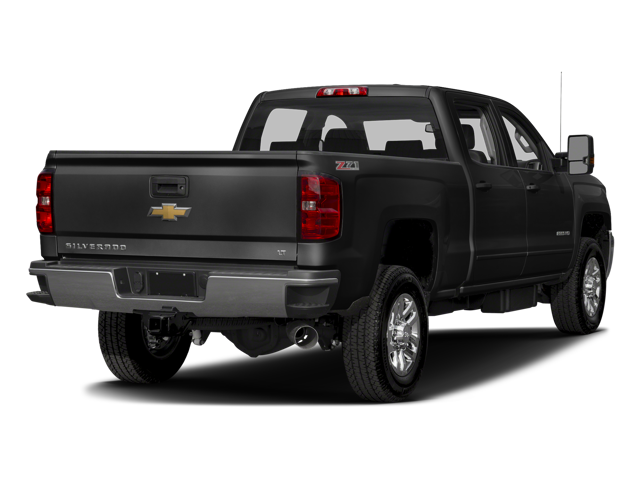

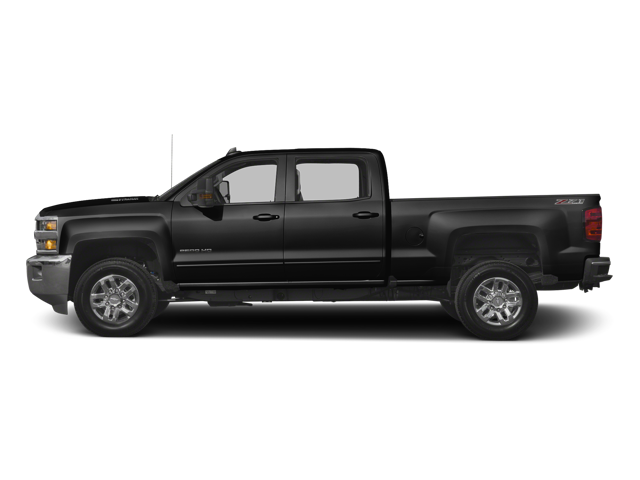

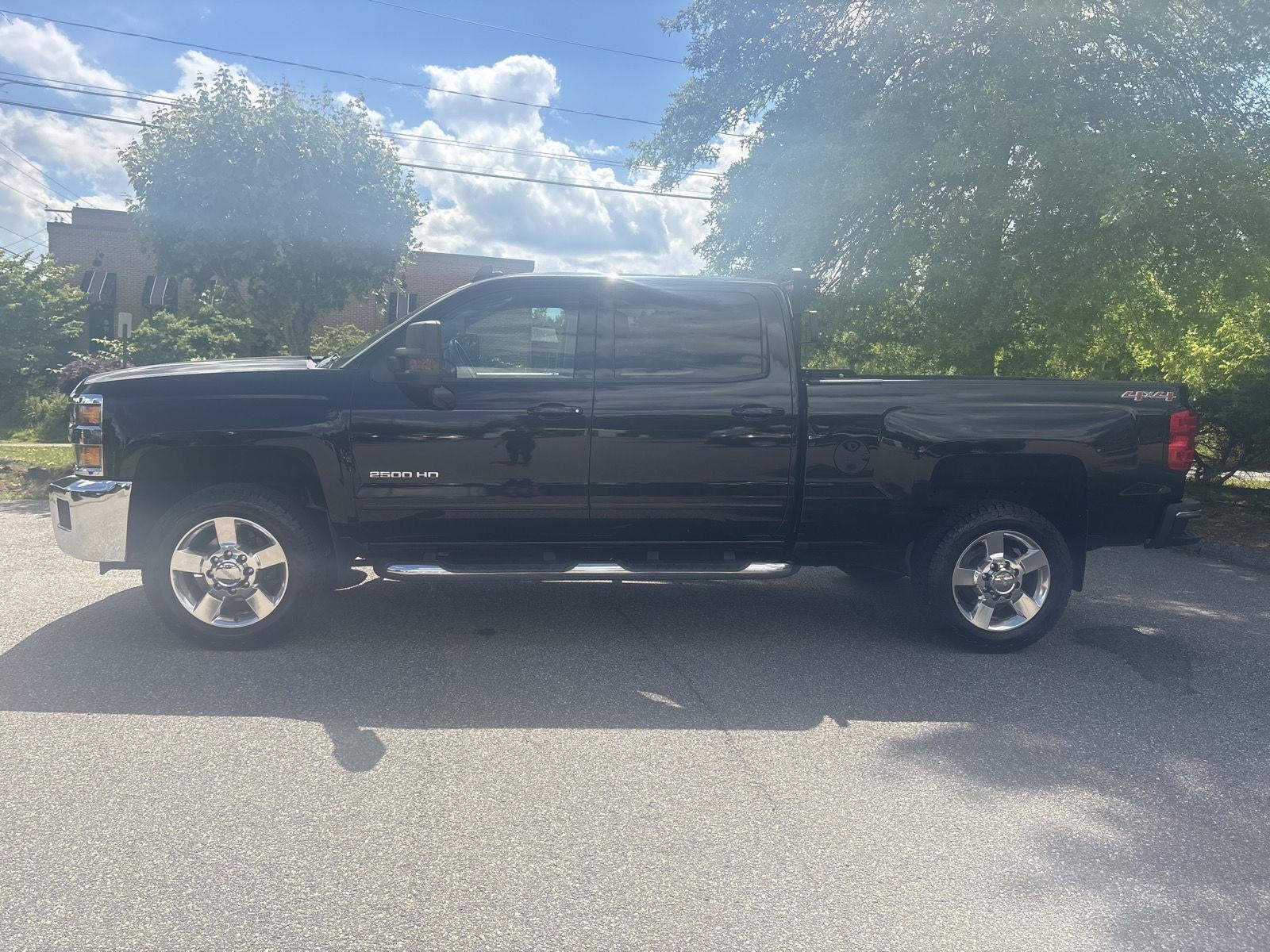

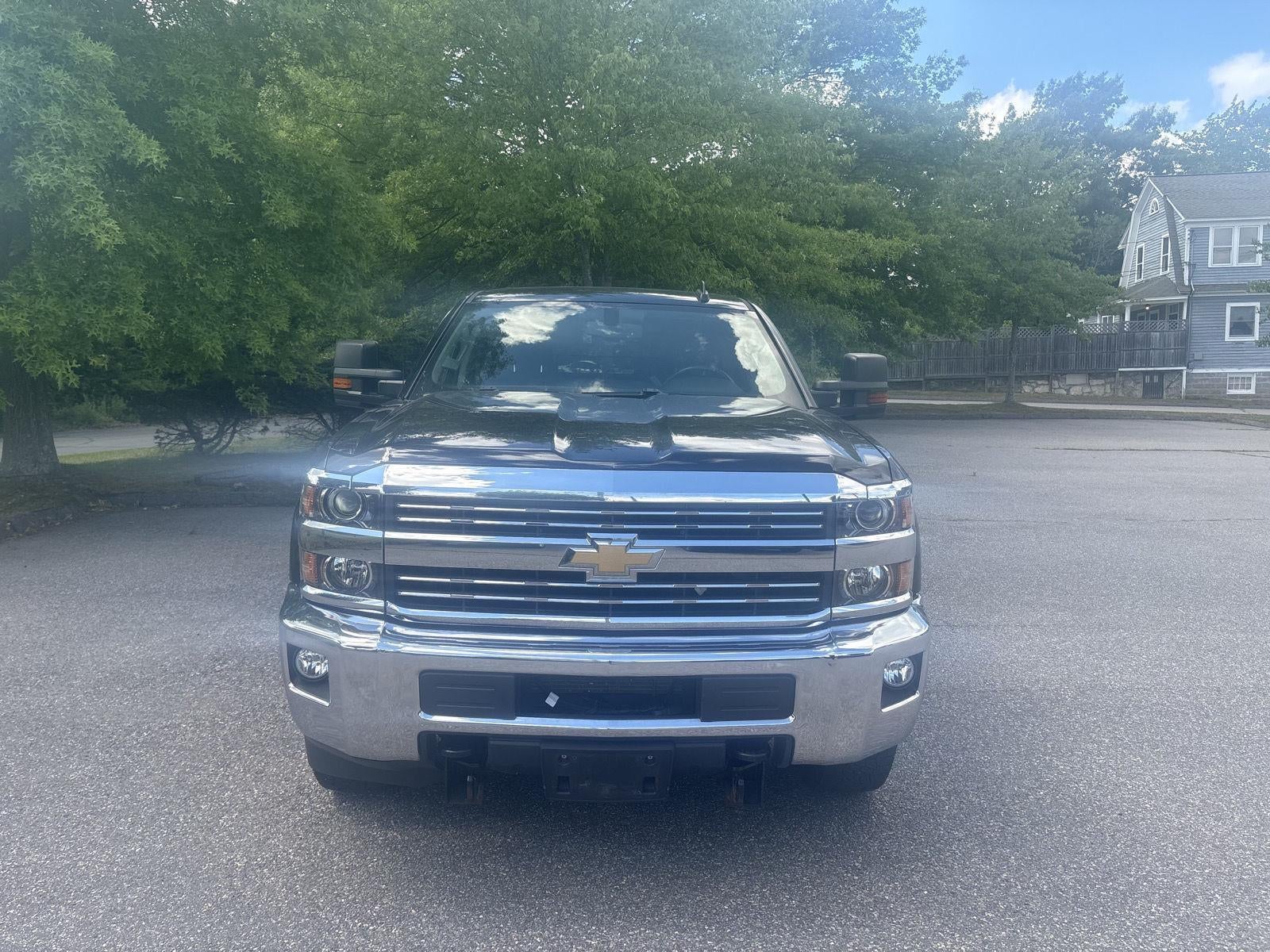

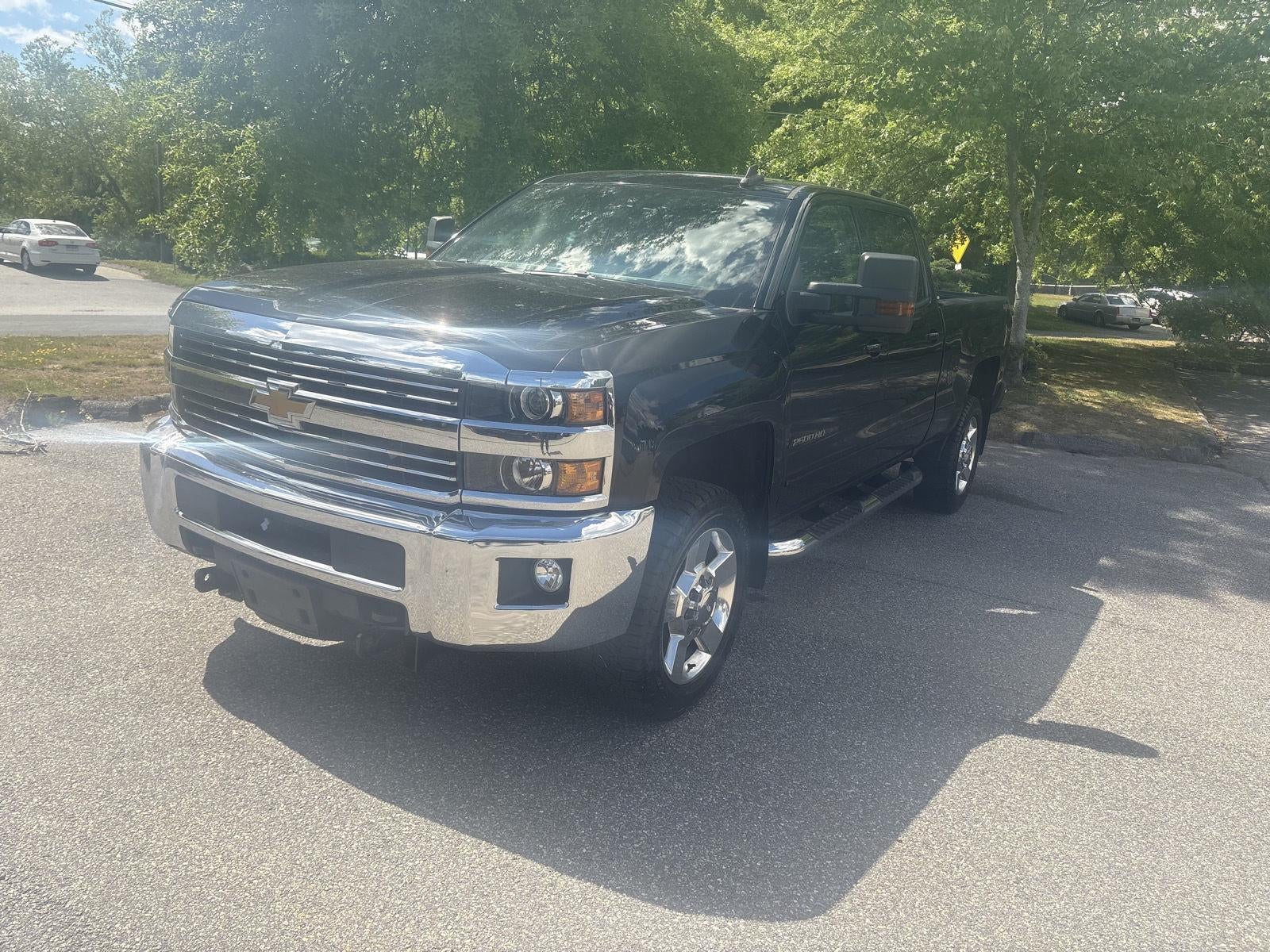

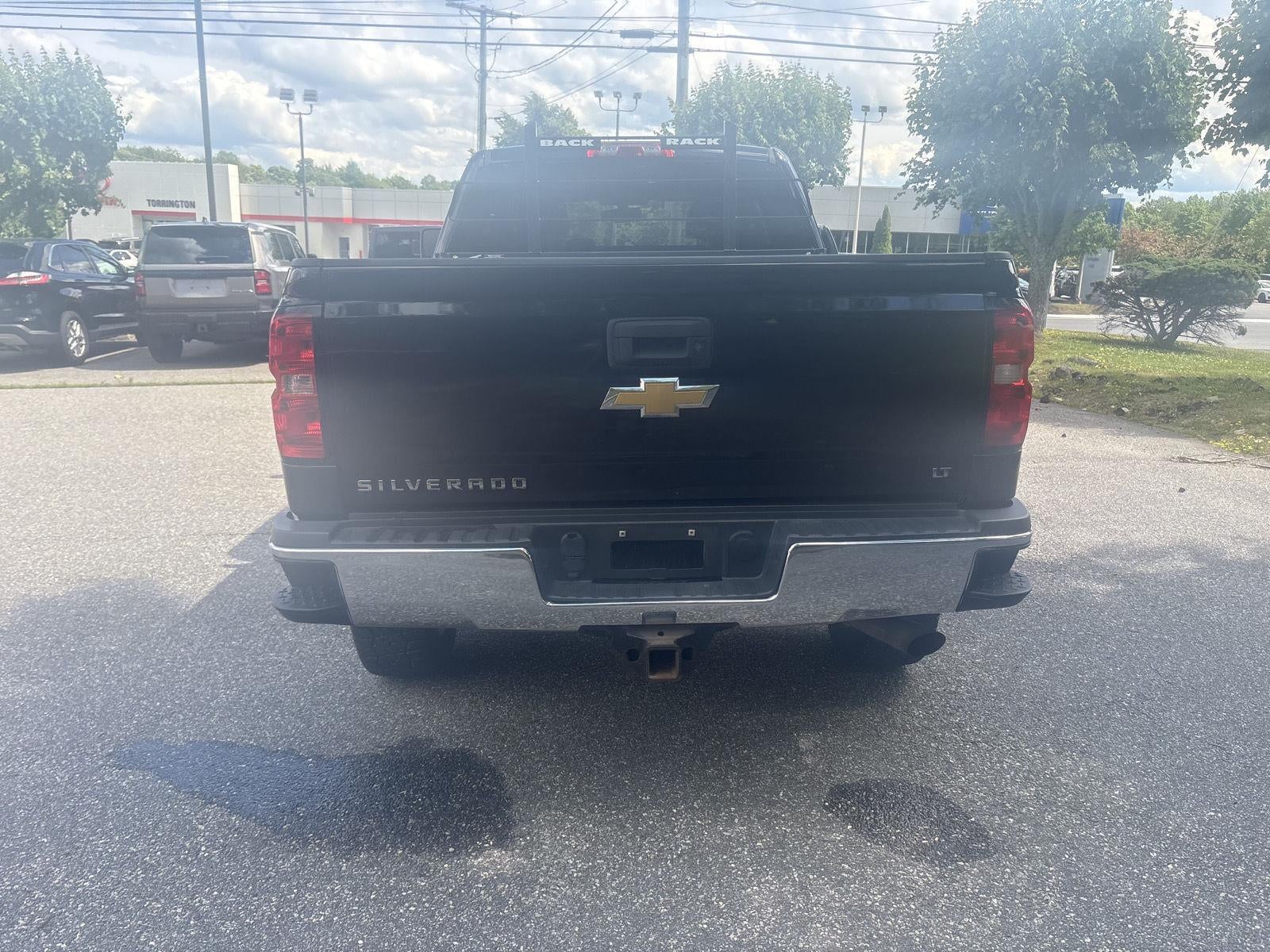

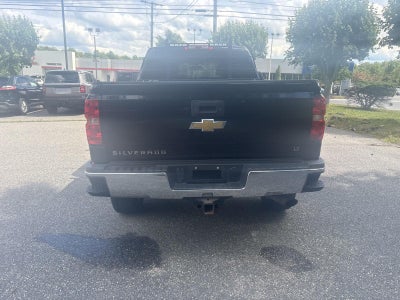

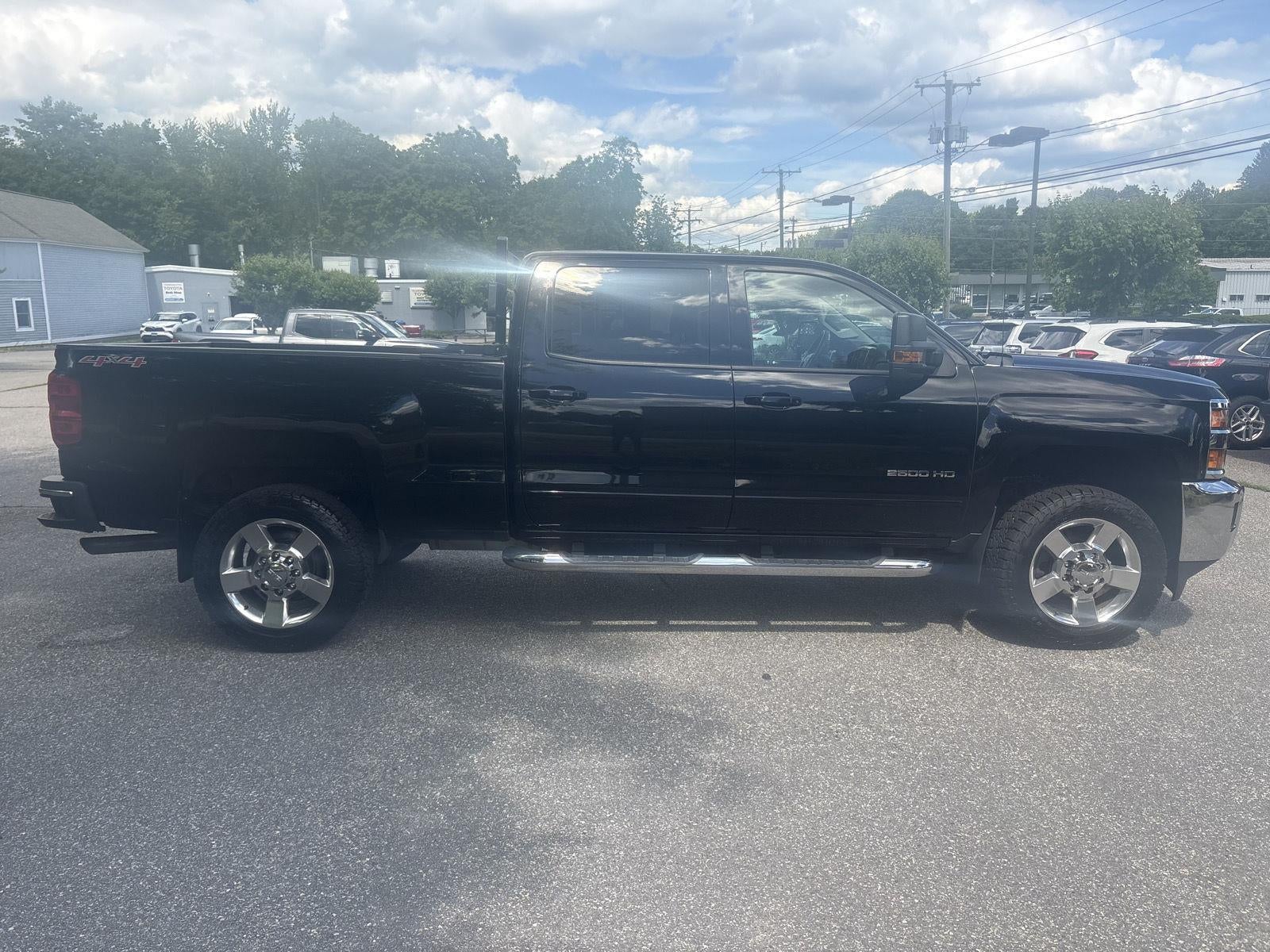

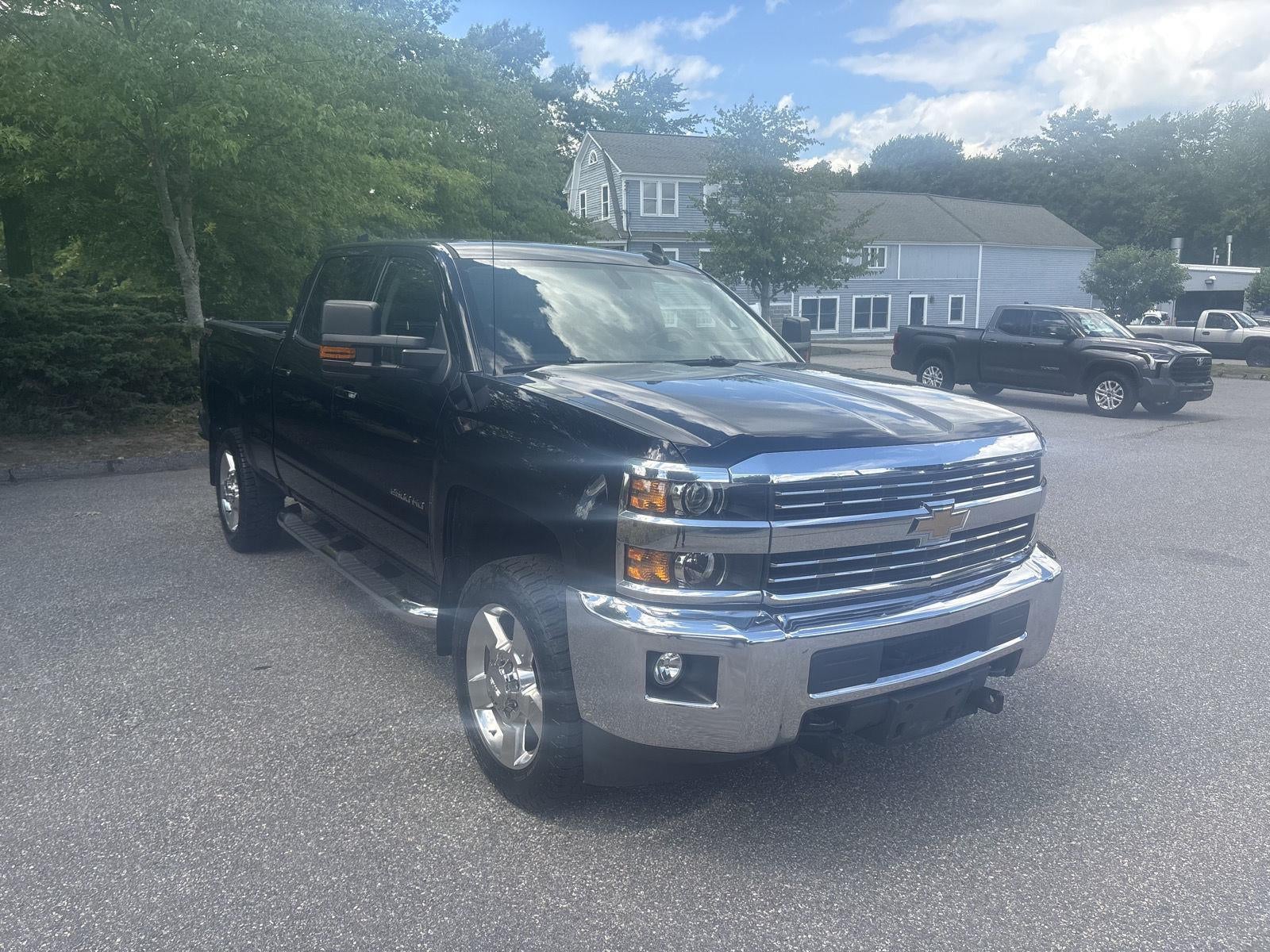

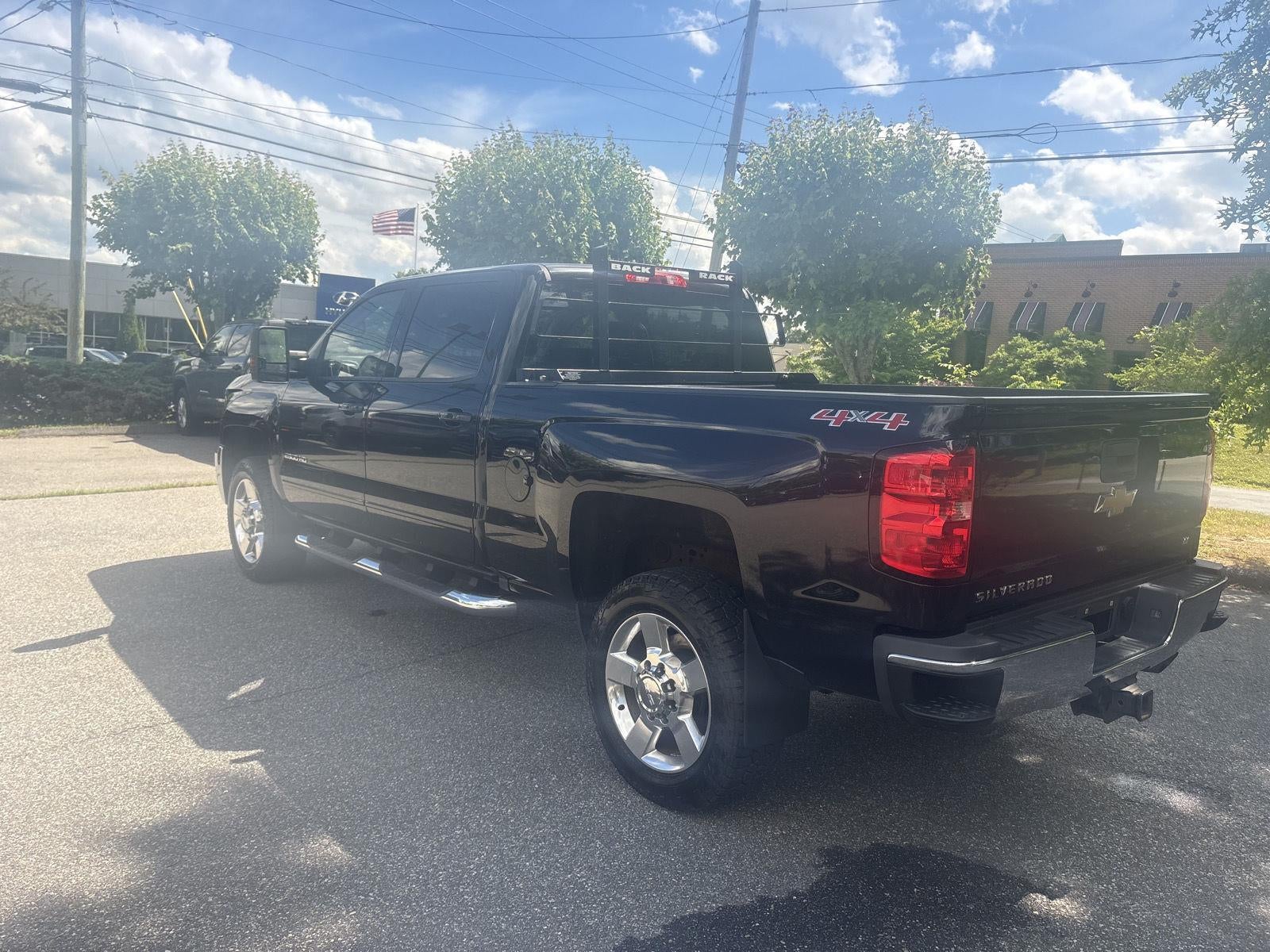

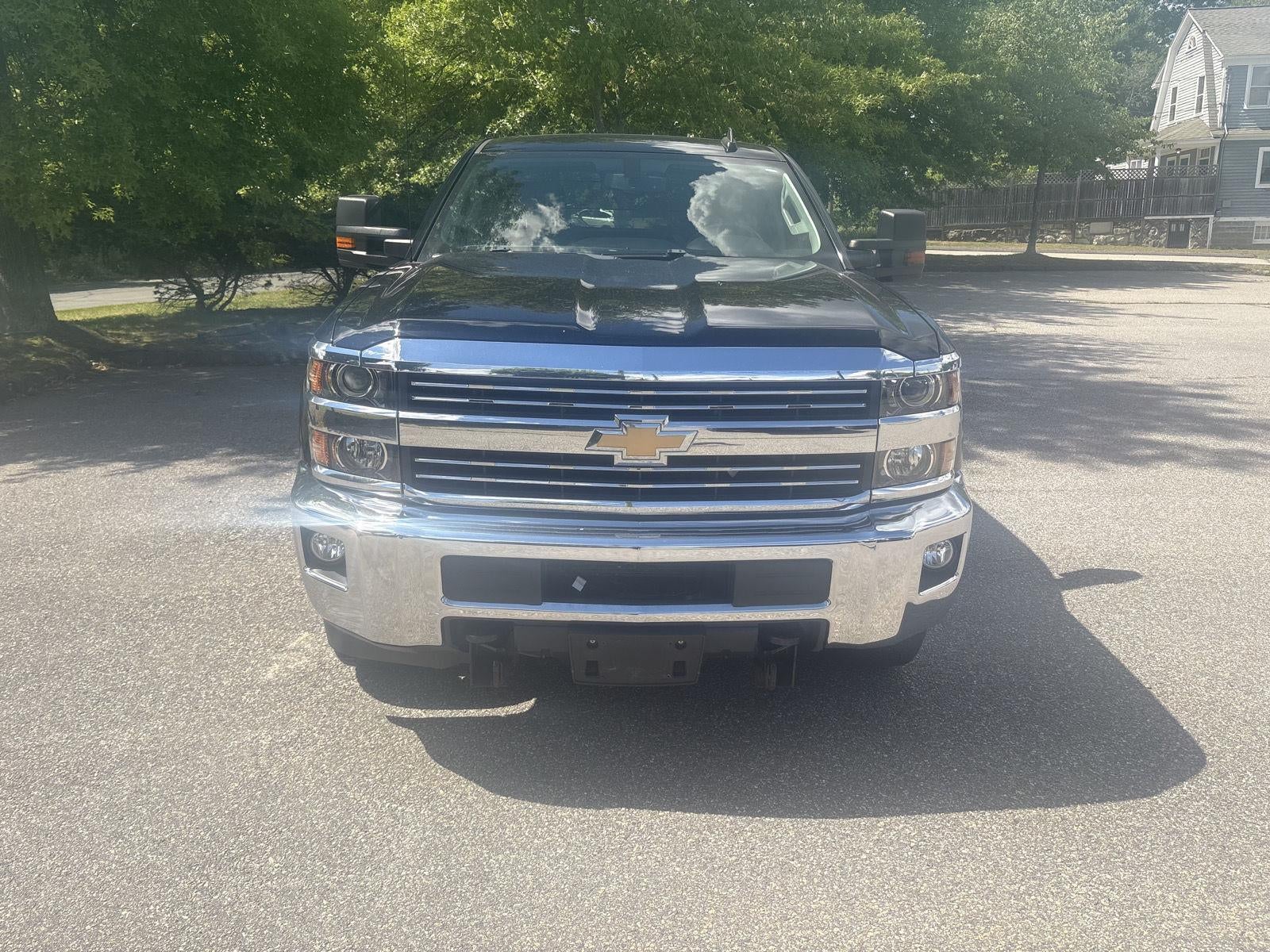

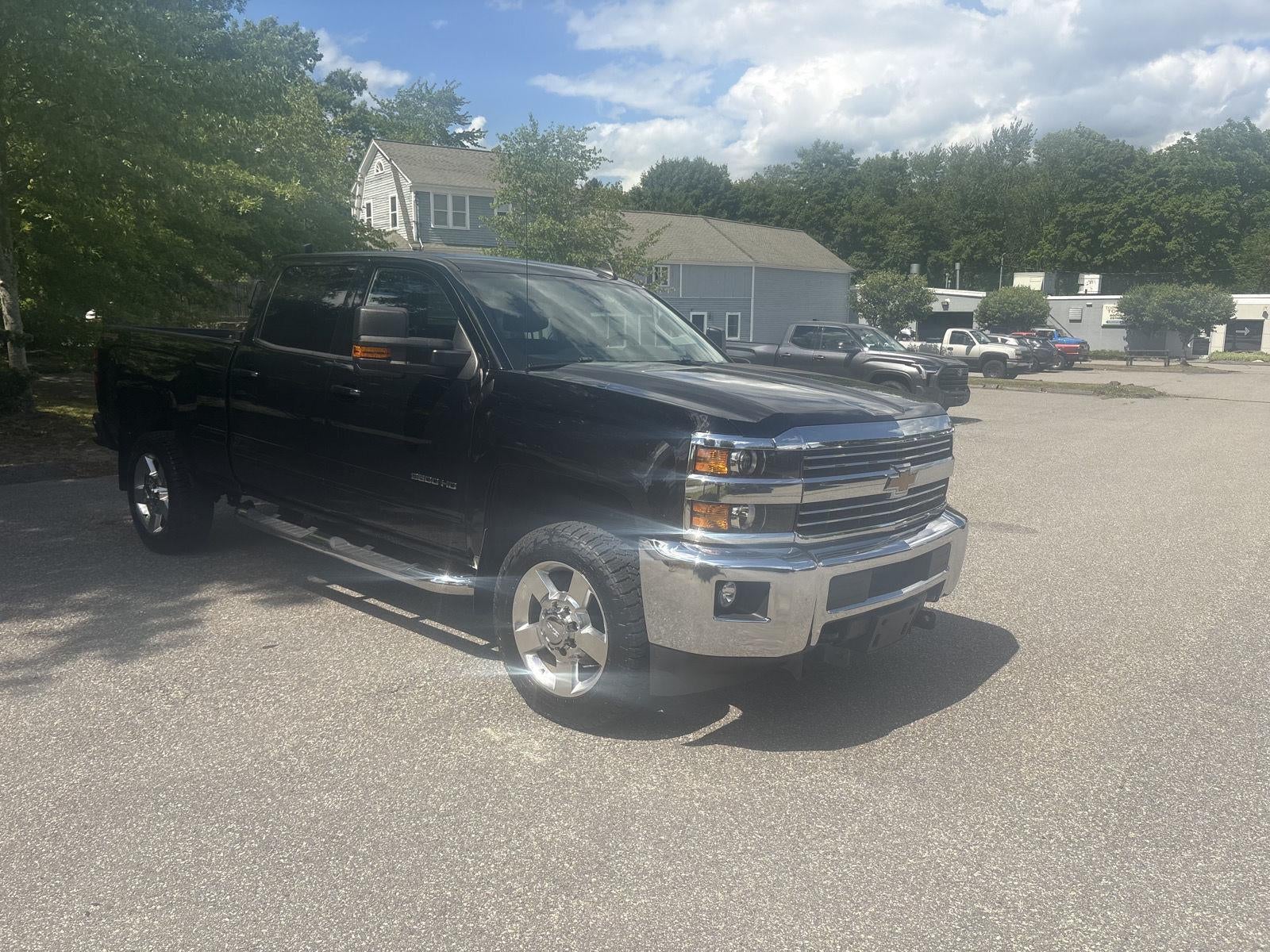

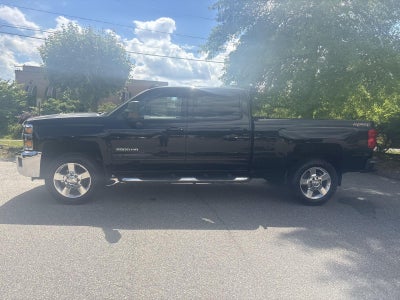

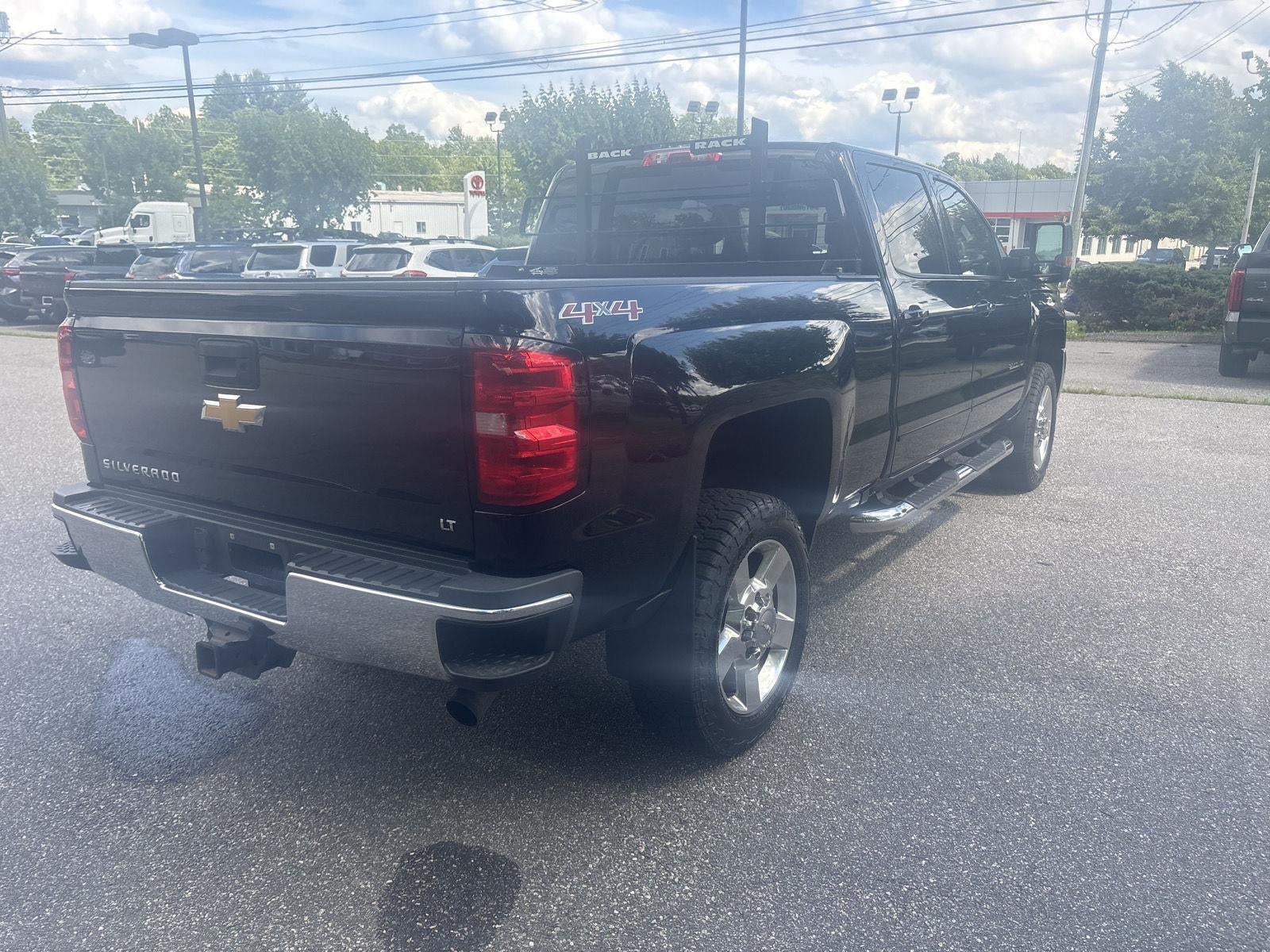

• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
