Trailering Package

• Trailer Hitch, 7-Pin And 4-Pin Connectors ,(Ctt) Hitch Guidance
• Prograde Trailering System Includes (Pz8) Hitch Guidance With Hitch View ,(U1d) In-Vehicle Trailering App

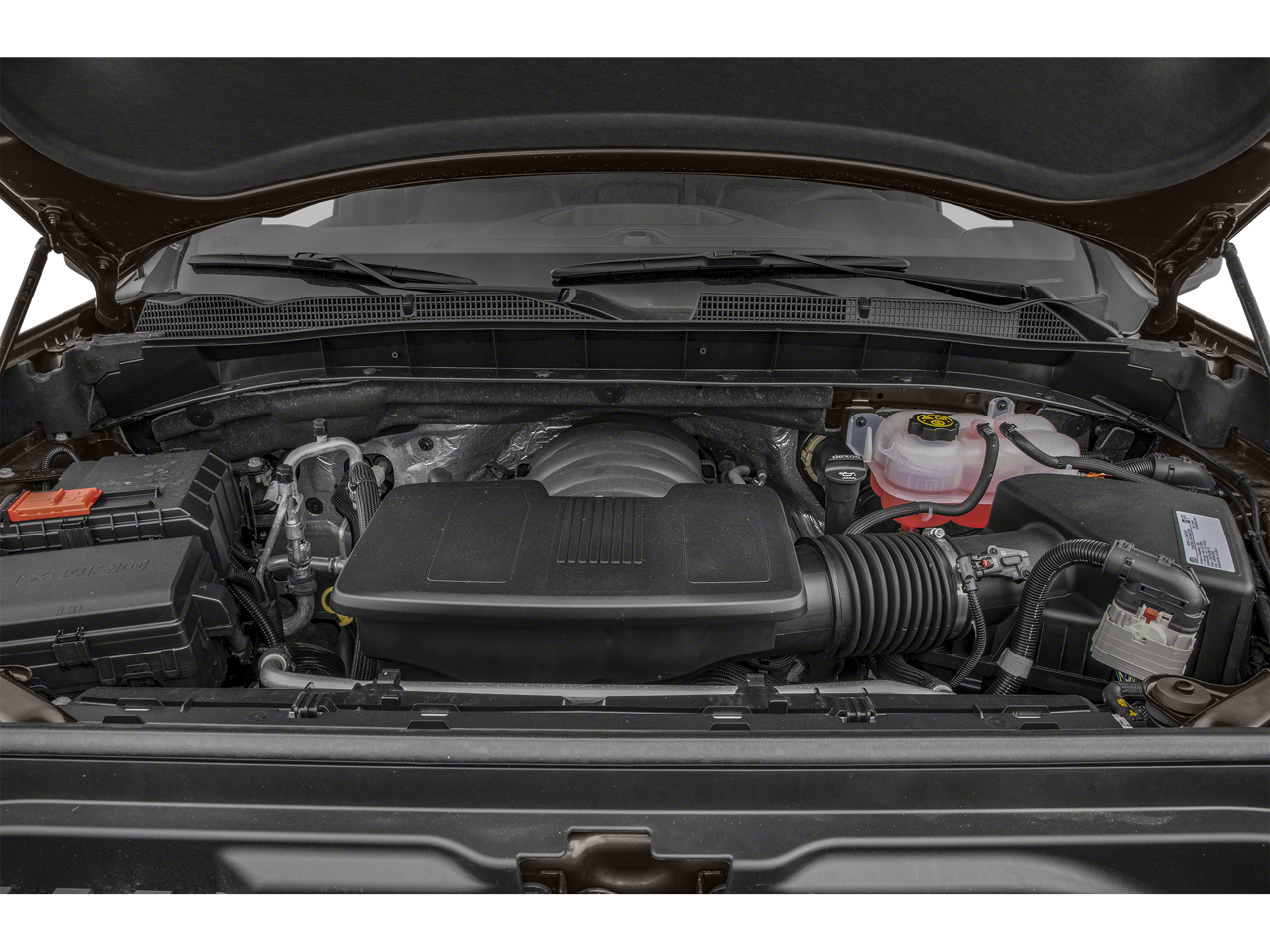

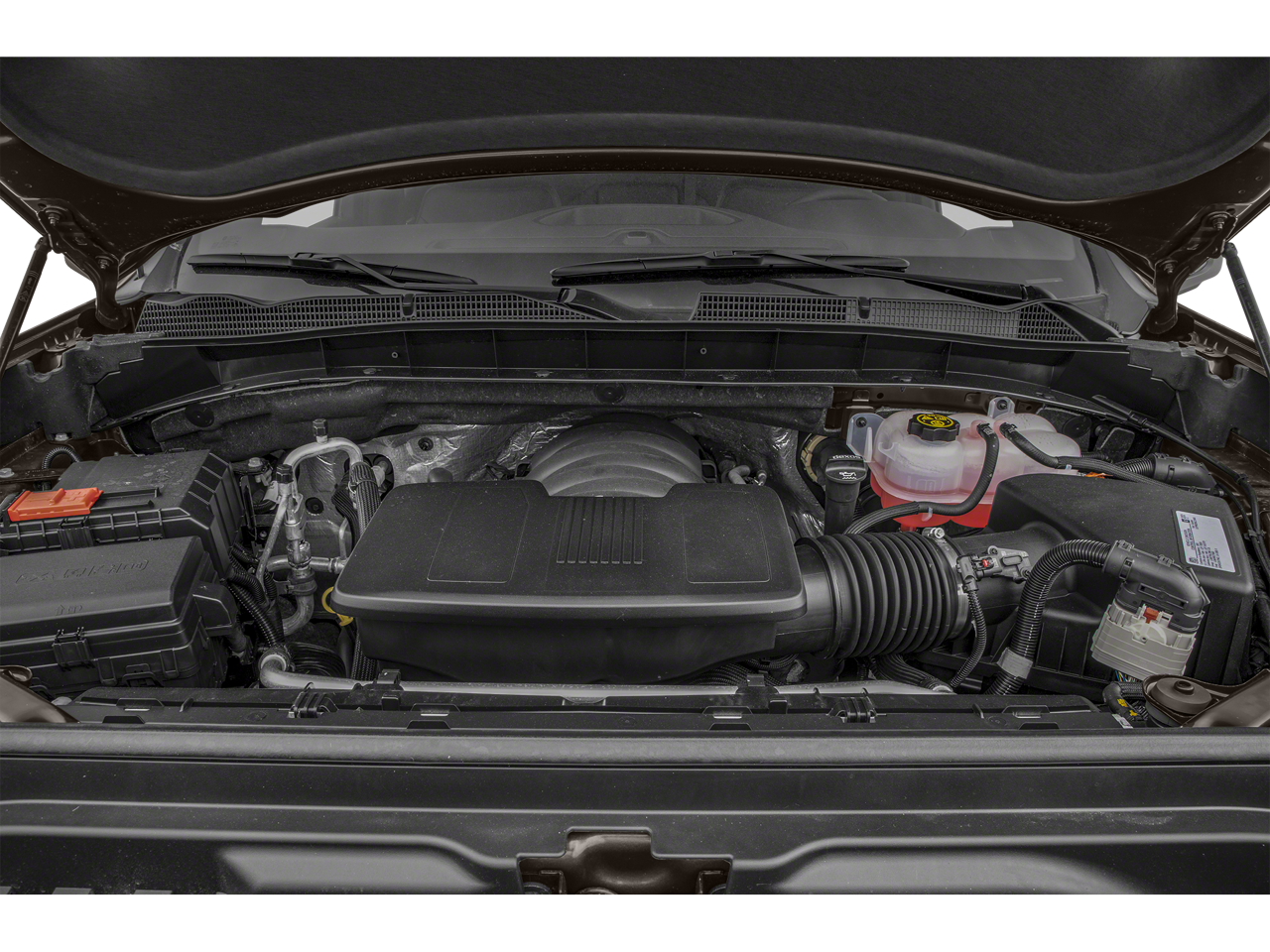

• Engine, 5.3L Ecotec3 V8 (355 Hp [265 Kw] @ 5600 Rpm, 383 Lb-Ft Of Torque [518 Nm] @ 4100 Rpm); Featuring Available Dynamic Fuel Management That Enables The Engine To Operate In 17 Different Patterns Between 2 And 8 Cylinders, Depending On Demand, To Optimize Power Delivery And Efficiency (Not Available On Tk10743 Model.)
• Rear Axle, 3.23 Ratio
• Pickup Bed
• Gvwr, 7000 Lbs. (3175 Kg) (Requires Crew Cab Model With (L84) 5.3L Ecotec3 V8 Engine Or (L87) 6.2L Ecotec3 V8 Engine.)
• Air Filter, Heavy-Duty
• Automatic Stop/Start (Standard On Vehicles Built Before 6-7-2021. Most Vehicles Built On Or After 6-7-2021 That Are Equipped With A V8 Engine ,(Mqb) 10-Speed Automatic Transmission Will Have (Nss) Not Equipped With Automatic Stop/Start, Which Removes Automatic Stop/Start And Its Content. See Dealer For Details)
• Hill Descent Control
• Auto-Locking Rear Differential
• Transfer Case, Two-Speed, Electronic Autotrac With Push Button Control (4Wd Models Only)
• Suspension, Off-Road With 2" Factory Installed Lift And Monotube Shocks
• Four Wheel Drive
• Cooling, External Engine Oil Cooler (Not Available With (Lm2) Duramax 3.0L Turbo-Diesel I6 Engine.)
• Cooling, Auxiliary External Transmission Oil Cooler (Not Available With (Lm2) Duramax 3.0L Turbo-Diesel I6 Engine.)
• Alternator, 170 Amps (Included And Only Available With (L84) 5.3L Ecotec3 V8 Engine Or (L87) 6.2L Ecotec3 V8 Engine. Not Available With (Lm2) Duramax 3.0L Turbo-Diesel I6 Engine.)
• Battery, Heavy-Duty 730 Cold-Cranking Amps/80 Amp-Hr, Maintenance-Free With Rundown Protection And Retained Accessory Power (Included And Only Available With (L84) 5.3L Ecotec3 V8 Engine, (L3b) 2.7L Turbo Engine ,(L87) 6.2L Ecotec3 V8 Engine.)
• Frame, Fully-Boxed, Hydroformed Front Section
• Trailer Brake Controller, Integrated
• Recovery Hooks, Red
• Skid Plates
• Cargo Tie Downs (12), Fixed, Rated At 500 Lbs Per Corner
• Steering, Electric Power Steering (Eps) Assist, Rack-And-Pinion
• Brakes, 4-Wheel Antilock, 4-Wheel Disc With Duralife Rotors
• Capless Fuel Fill
• Exhaust, Dual With Premium Tips (With (Pcp) At4 Carbonpro Edition The Exhaust Tips Will Be Black.)
• Exhaust, Aluminized Stainless-Steel Muffler And Tailpipe
• Wheel, 17" X 8" (43.2 Cm X 20.3 Cm) Full-Size, Steel Spare
• Wheelhouse Liners, Rear
• Tire Carrier Lock Keyed Cylinder Lock That Utilizes Same Key As Ignition And Door
• Bumper, Front, Body-Color Lower (Front Bumper Color Will Be High Gloss Black.)
• Bumper, Rear Body-Color With Corner Steps
• Cornerstep, Rear Bumper
• Grille (Body-Color Surround With High Gloss Black Mesh And Black Chrome Inserts. With (Pcp) At4 Carbonpro Edition The Grille Will Have A Unique Grille Surround With Black Chrome Finish.)
• Fog Lamps, Led
• Taillamps, Led Signature Taillight With Led Stop And Reverse Light
• Mirror Caps, High Gloss Black (Deleted With (Dqs) Outside Power Adjustable Vertical Trailering Mirrors And Mirror Caps Will Be Chrome.)
• Glass, Deep-Tinted
• Lamps, Cargo Area, Cab Mounted Integrated With Center High Mount Stop Lamp, With Switch In Bank On Left Side Of Steering Wheel
• Led Cargo Area Lighting Located In Cargo Bed Activated With Switch On Center Switch Bank Or Key Fob
• Tailgate, Gmc Multipro Tailgate With Six Functional Load/Access Features
• Tailgate, Gate Function Manual With Ez Lift Includes Power Lock And Release, Includes Hitch Area Light
• Tailgate And Bed Rail Protection Caps, Top
• Door Handles, Body-Color
• Audio System Feature, 6-Speaker System
• Steering Wheel Audio Controls
• 4G Lte Wi-Fi Hotspot Capable (Terms And Limitations Apply. See Onstar.Com Or Dealer For Details.)

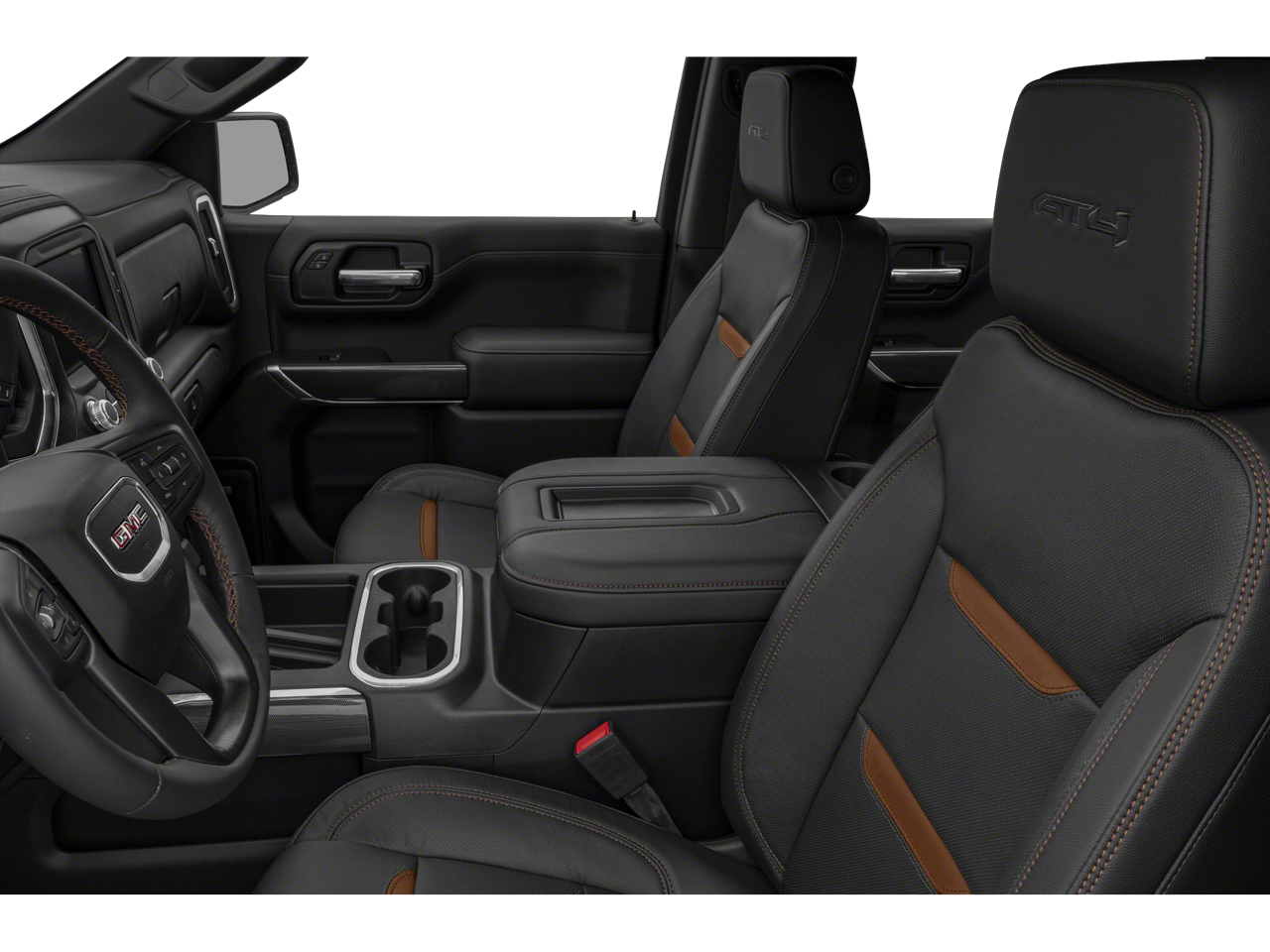

• Seat Adjuster, Driver 10-Way Power Including Lumbar
• Seat Adjuster, Passenger 10-Way Power Including Lumbar

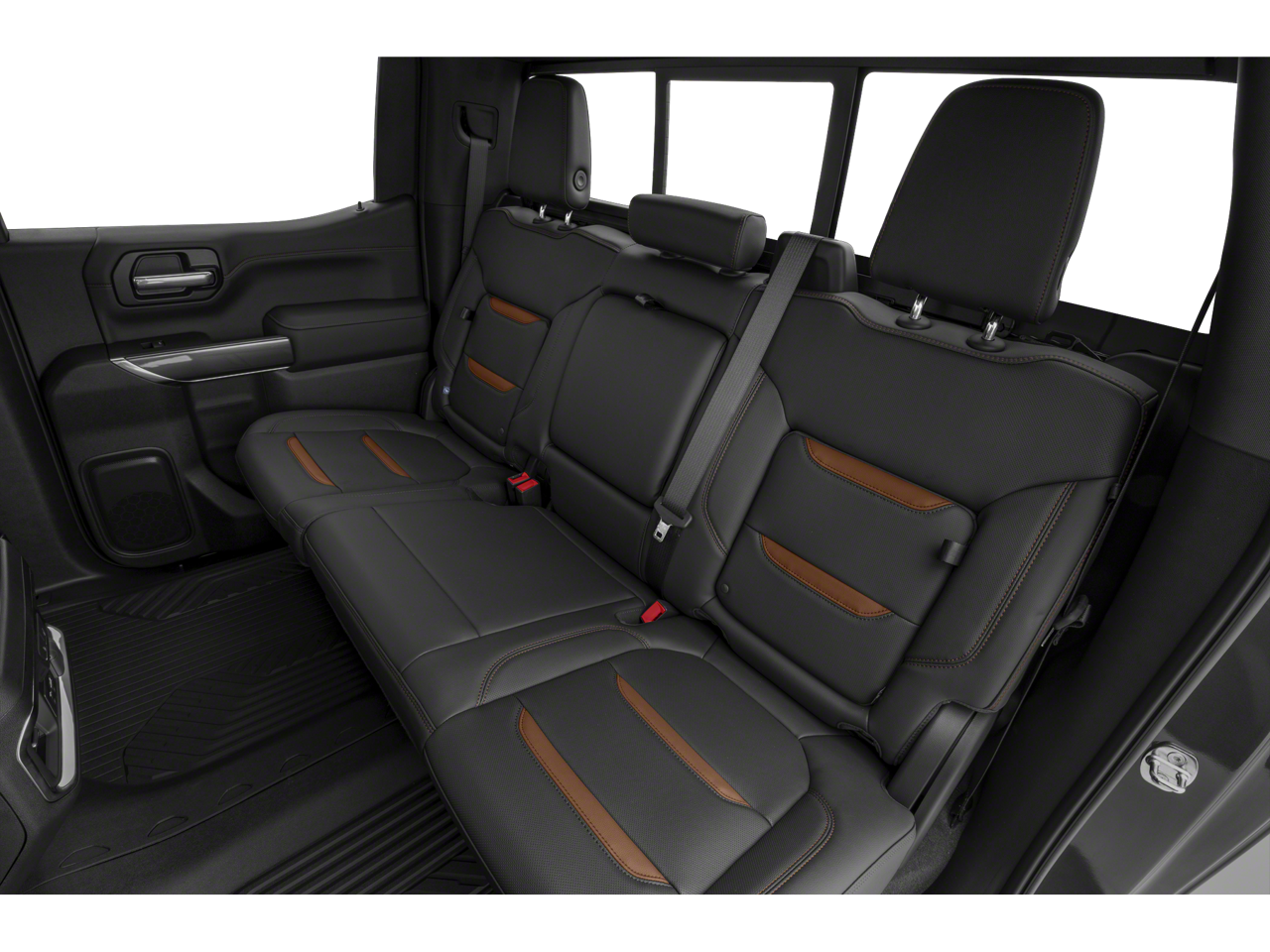

• Seat, Up-Level Rear With Storage Package, 60/40 Folding Bench For Crew Cab Models, Includes Full-Length Bench Seat, Seatback Storage On Left And Right Side, Center Fold Out Armrest With 2 Cupholders, Full Cab Width Under-Seat Storage, (Includes Child Seat Top Tether Anchor)

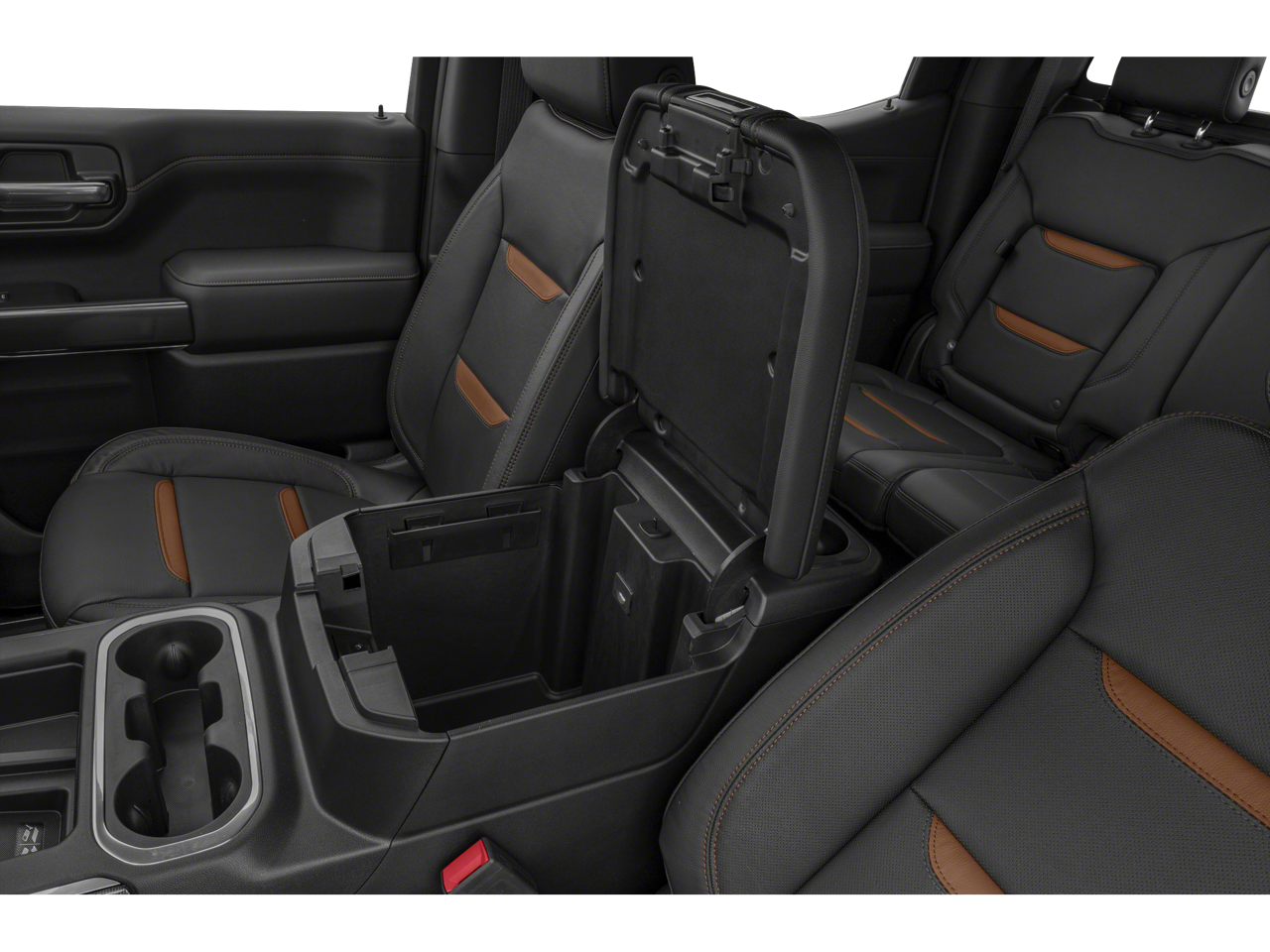

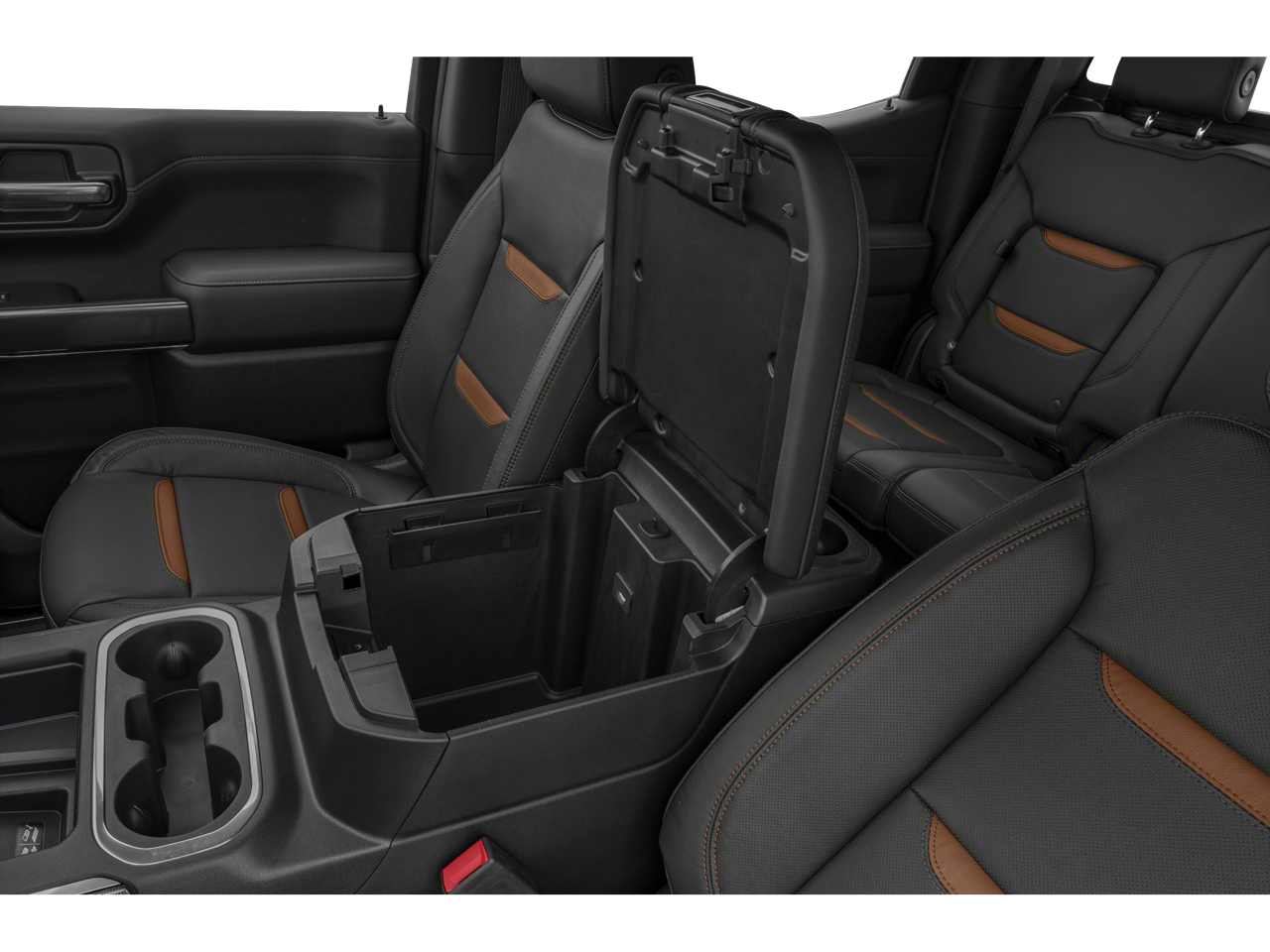

• Center Console, Floor-Mounted With Cup Holders, Cell Phone Storage, Power Cord Management, Hanging File Folder Capability
• Floor Covering, Color-Keyed Carpeting
• Steering Column, Manual Tilt-Wheel And Telescoping
• Steering Wheel, Leather-Wrapped
• Steering Wheel, Heated

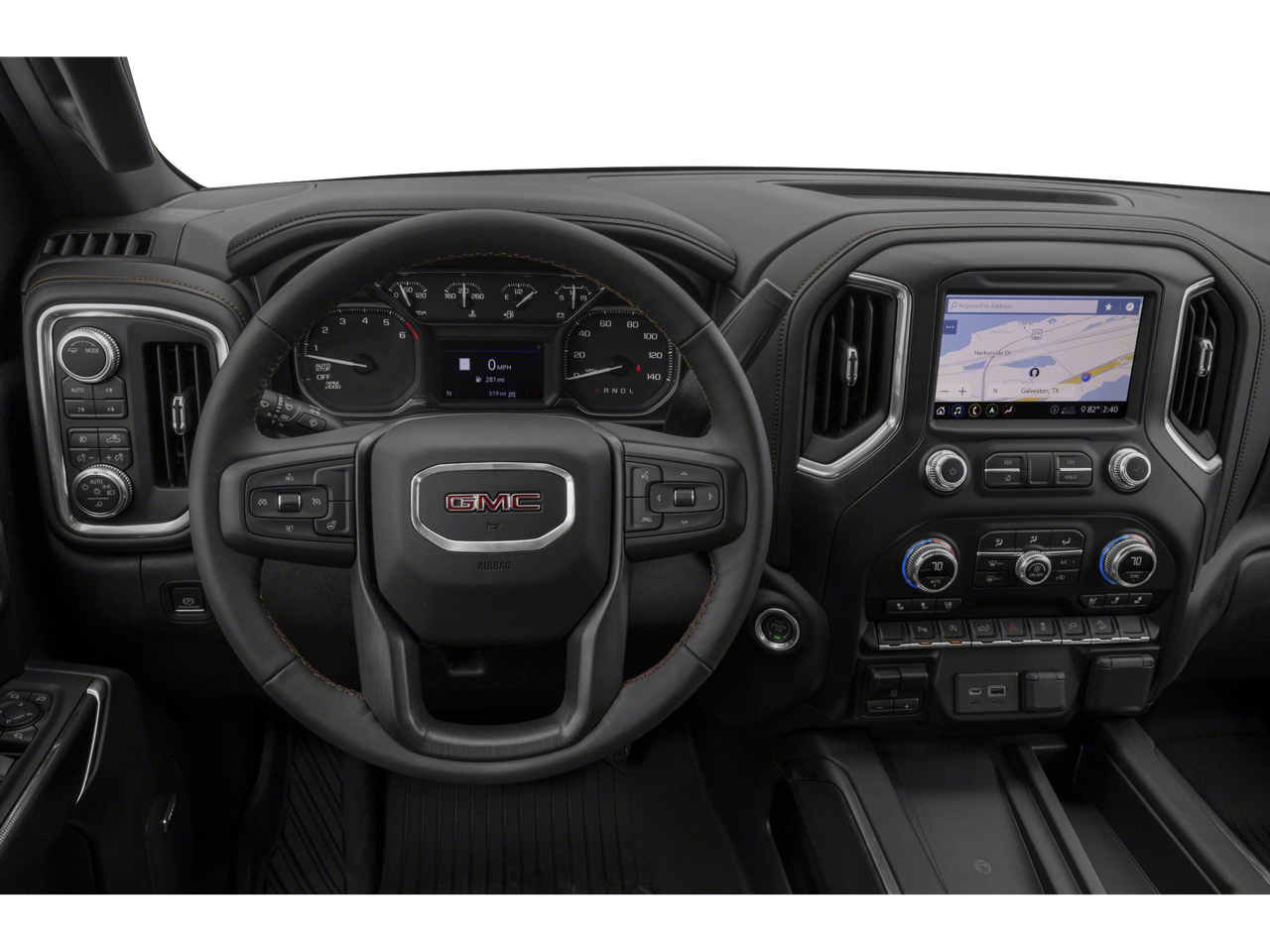

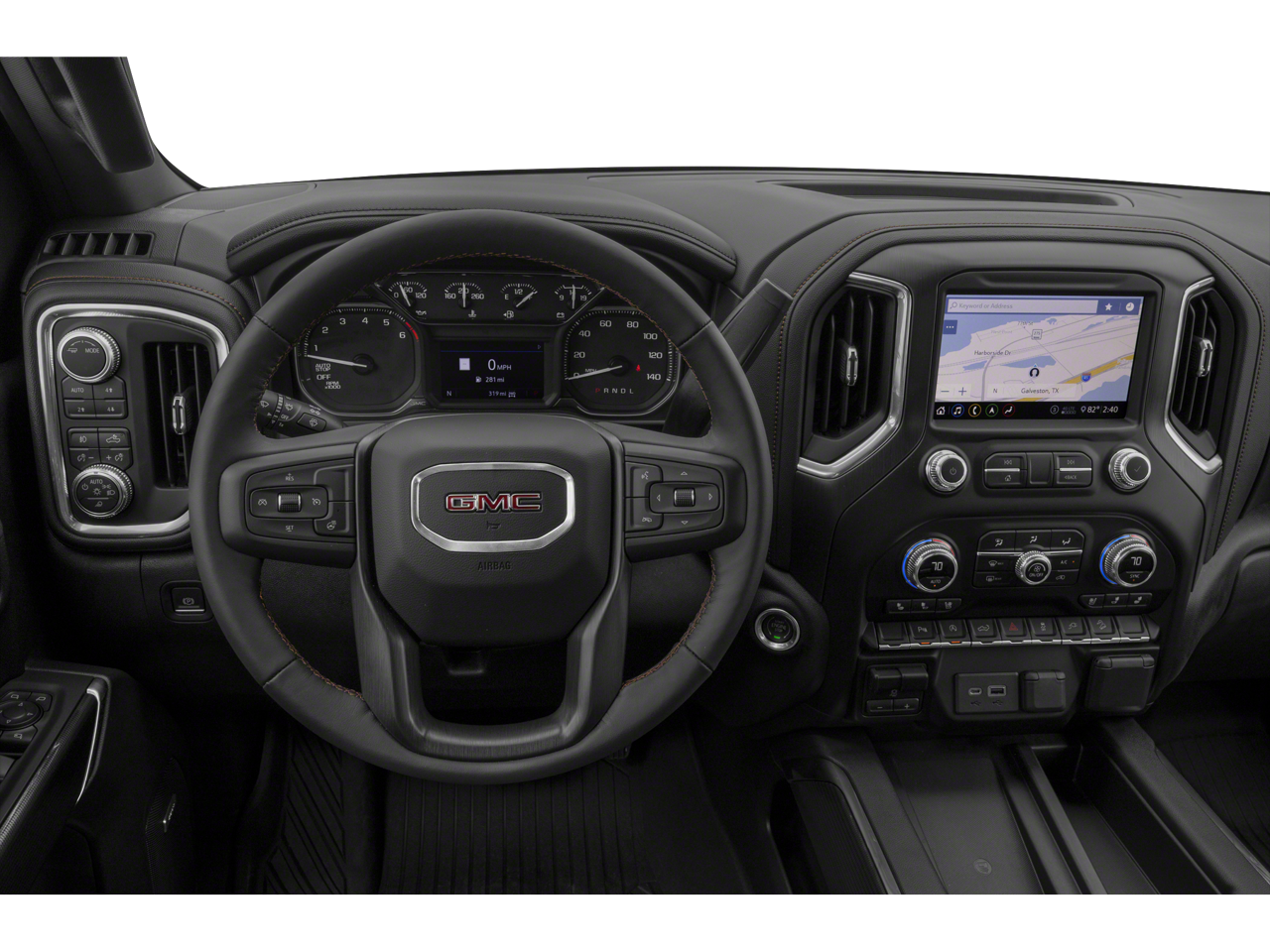

• Instrument Cluster, 6-Gauge Cluster Featuring Speedometer, Fuel Level, Engine Temperature, Tachometer, Voltage And Oil Pressure
• Driver Information Center, 4.2" Diagonal Color Display Includes Driver Personalization
• In-Vehicle Trailering App, System Includes Checklist, Trailer Maintenance Reminders, Trailer Security Alerts, Trailer Mileage, Tow/Haul Reminder And Trailer Electrical Diagnostics
• Compass, Located In Instrument Cluster
• Exterior Temperature Display, Located In Radio Display
• Brake Lining Wear Indicator
• Remote Vehicle Starter System
• Theft-Deterrent System, Unauthorized Entry
• Steering Column, Lock Control, Electrical
• Power Outlet, Instrument Panel, 120-Volt (400 Watts Shared With (Kc9) Bed Mounted Power Outlet)
• Usb Ports, Dual, Charge-Only (2Nd Row)
• Power Outlet, Bed Mounted, 120-Volt (400 Watts Shared With (Ki4) Instrument Panel Mounted Power Outlet)
• Air Conditioning, Dual-Zone Automatic Climate Control
• Air Vents, Rear
• Assist Handles Front A-Pillar Mounted For Driver And Passenger, Rear B-Pillar Mounted
• Gmc Connected Access Capable (Subject To Terms. See Onstar.Com Or Dealer For Details.)
• Stabilitrak, Stability Control System With Proactive Roll Avoidance And Traction Control, Includes Electronic Trailer Sway Control And Hill Start Assist
• Airbags, Dual-Stage Frontal Airbags For Driver And Front Outboard Passenger; Seat-Mounted Side-Impact Airbags For Driver And Front Outboard Passenger; Head-Curtain Airbags For Front And Rear Outboard Seating Positions; Includes Front Outboard Passenger Sensing System For Frontal Outboard Passenger Airbag (Always Use Seat Belts And Child Restraints. Children Are Safer When Properly Secured In A Rear Seat In The Appropriate Child Restraint. See The Owner's Manual For More Information.)
• Hitch Guidance
• Teen Driver A Configurable Feature That Lets You Activate Customizable Vehicle Settings Associated With A Key Fob, To Help Encourage Safe Driving Behavior. It Can Limit Certain Available Vehicle Features, It Prevents Certain Safety Systems From Being Turned Off. An In-Vehicle Report Card Gives You Information On Driving Habits And Helps You To Continue To Coach Your New Driver
• Rear Seat Reminder

• Mileage
• Fuel Economy Est-Combined (MPG): 18
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 170
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3800
• Gross Axle Wt Rating - Rear (lbs): 3800
• Curb Weight - Front (lbs): 2839
• Curb Weight - Rear (lbs): 1976
• Gross Vehicle Weight Rating Cap (lbs): 7000
• Gross Combined Wt Rating (lbs): 15000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 920
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 7500
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1875
• Maximum Trailering Capacity (lbs): 9200
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Solid Axle
• Spring Capacity - Front (lbs): 3800
• Spring Capacity - Rear (lbs): 3850
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 3800
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Front: 3.23
• Axle Ratio (:1) - Rear: 3.23
• Shock Absorber Diameter - Front (mm): 50
• Shock Absorber Diameter - Rear (mm): 51
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.5 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: XCK
• Rear Tire Order Code: XCK
• Spare Tire Order Code: XCQ
• Front Tire Size: 265/65R18SL
• Rear Tire Size: 265/65R18SL
• Spare Tire Size: 265/70R17SL
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.5
• Rear Wheel Size (in): 18 x 8.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.9
• Turning Diameter - Curb to Curb (ft): 46.3
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 24
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 147.53
• Length, Overall (in): 231.72
• Width, Max w/o mirrors (in): 81.24
• Height, Overall (in): 78.35
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.88
• Ground Clearance, Rear (in): 10.88
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 69.92
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.63
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 62.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.16
• Second Hip Room (in): 60.24
• Summary

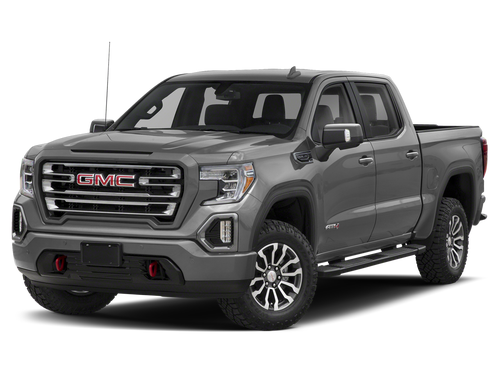

• Vehicle Name: GMC Sierra 1500
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.9
